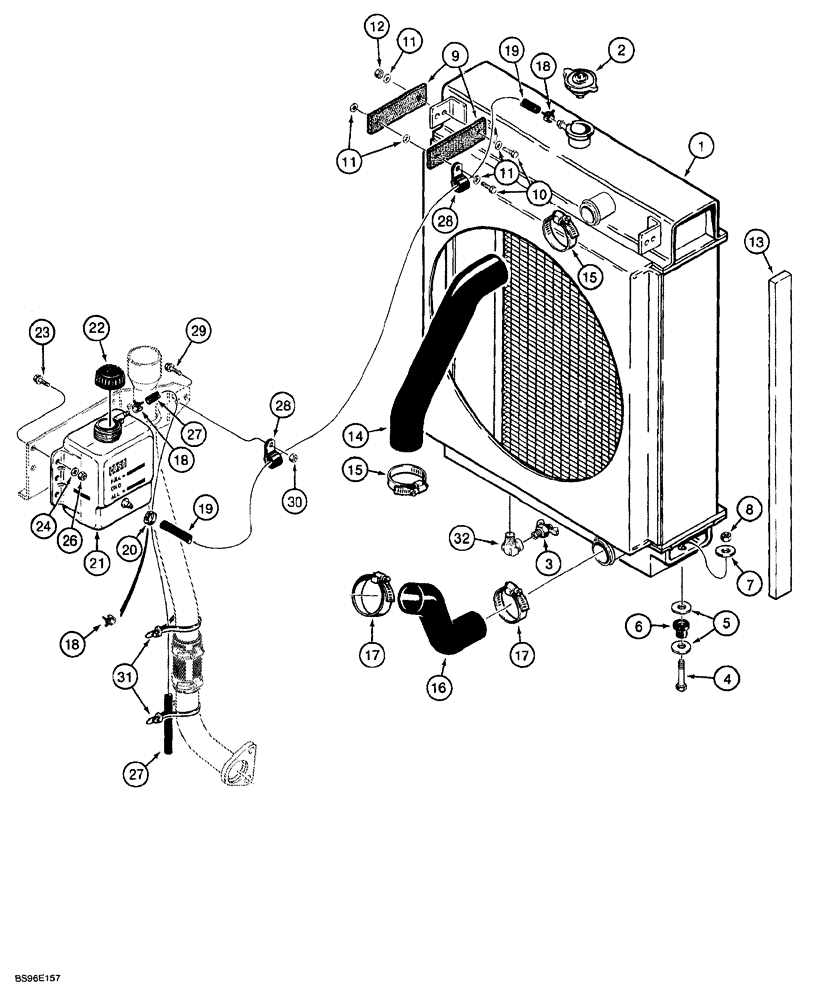

Запчасти Case 850G (2-06) - RADIATOR, HOSES, AND COOLANT BOTTLE (01) - ENGINE

1

R49826

RADIATOR

ASSEMBLY engine cooling, for correct assembly and components see Figure 2-08 and 2-10

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

radiator valve, 1/4 inch PT

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

5

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

flat, special

4шт.

6

R29799

SHOCK ABSORBER

rubber insulator, radiator mounting

2шт.

7

D25022

WASHER

flat, special, 17/32 x 1-3/4 x 3/16 inch

2шт.

8

231-1448

NUT,1/2"-13, GB

hex, NC

2шт.

9

D73500

STRAP

radiator mounting

4шт.

10

113-2279

LOCK BOLT,Locking, 3/8"-16 x 1 3/4", G5

Use with blue Loctite No 242, see below

4шт.

11

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8 inch

10шт.

12

231-1446

NUT,3/8" - 16, Gr 5

2шт.

13

R53624

PAD

radiator baffle, non-recirculating, 2 x 31-5/16 inch, see note below

2шт.

14

R54514

RADIATOR HOSE,45.00 mm ID x 400.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

radiator, upper

1шт.

15

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

radiator hose, upper, adj, 1-3/4 - 2-5/8 inch dia

2шт.

16

R54513

RADIATOR HOSE,58.00 mm ID x 195.00 mm, SAE 20R4 Class C or SAE 20R4 D1

radiator, lower

1шт.

17

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

Radiator hose, lower, adj

2шт.

18

A171099

HOSE CLAMP,13.2mm - 15.4mm

coolant reservoir hoses, spring-type

2-3шт.

19

138593A1

HOSE,8.3 mm ID x 1120.00 mm, SAE J30 OR SAE 20R4

1270 mm (50 inch) long, radiator to coolant reservoir

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

19

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Coolant reservoir Overflow

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

20

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj, 1/4 - 5/8 inch dia, at coolant reservoir, if used

1шт.

21

L127093

RESERVOIR

COOLANT

1шт.

22

1547924C1

CAP

coolant reservoir, recovery bottle, screw-on

1шт.

23

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

24

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

26

231-1445

NUT,5/16"-18, GB

4шт.

27

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Coolant reservoir Overflow

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Coolant reservoir hoses, P-type

2шт.

29

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

231-1445

NUT,5/16"-18, GB

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, overflow hose to engine oil filler tubes

2шт.

32

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street, radiator valve drain, if used

1шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
