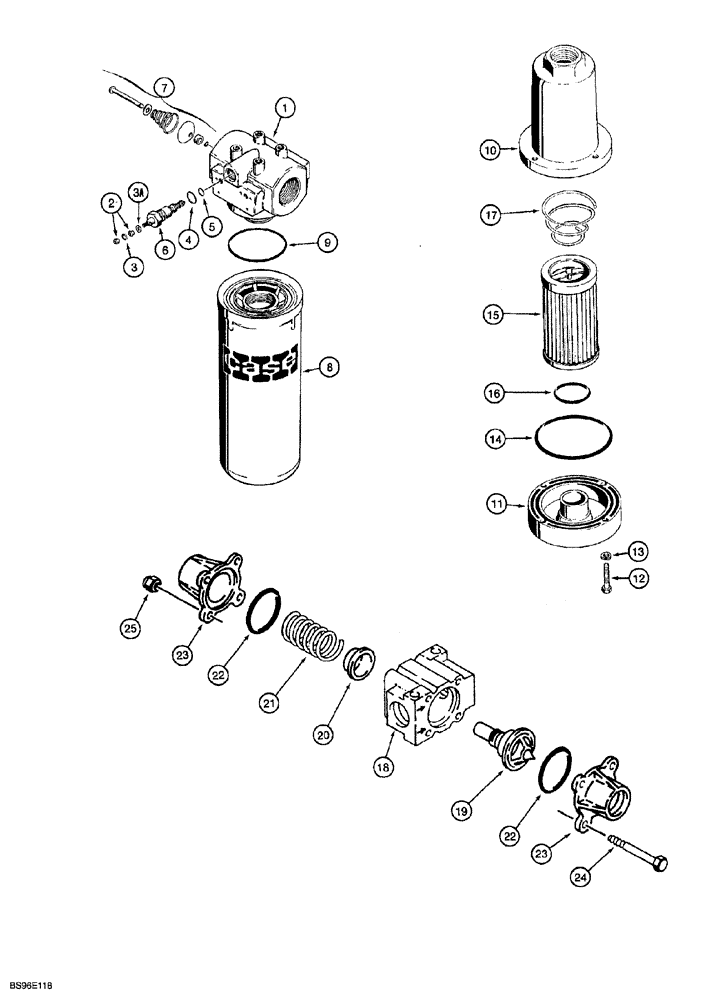

Запчасти Case 850G (6-32) - HYDRAULIC OIL FILTERS AND BYPASS VALVE TRANSMISSION OIL FILTER (07) - HYDRAULIC SYSTEM

R48993

FILTER

ASSEMBLY, transmission oil, see Figure 6-26 for mounting, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, transmission oil

1шт.

N7929

INDICATOR

ASSEMBLY restriction, electric, transmission oil filter, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

Transmission oil filter

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16"), Transmission oil filter

1шт.

3a

NSS

NOT SOLD SEPARAT

WASHER green, transmission oil filter

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Inner, small, transmission oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, transmission oil filter

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass, filter, transmission oil

1шт.

1346028C1

HYDRAULIC OIL FILTER

filter, replacement, transmission oil, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter, transmission oil

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

element, transmission oil

1шт.

D35144

FILTER

FILTER, OIL ASSEMBLY transmission oil, suction line, see Figure 6-28 for attaching parts, Includes: Ref. 10 - 17

1шт.

10

D37033

HOUSING

filter, transmission suction line

1шт.

11

D37034

HEAD

filter, transmission suction line

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Transmission suction line filter

4шт.

13

492-11025

LOCK WASHER,1/4"

Transmission suction line filter

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

housing, transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT, FILTER transmission suction line, Includes: Ref. 16

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Transmission suction line filter

1шт.

17

D37036

SPRING

element, transmission suction line filter

1шт.

R51141

THERMOSTAT

ASSEMBLY valve, bypass, thermal, cooling circuit, see Figure 6-30 for attaching parts, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY bypass valve, thermal bypass assembly

1шт.

19

N9802

THERMOSTAT

bypass element, thermal bypass valve assembly

1шт.

20

A48899

SEAL

thermostat, thermal bypass valve assembly

1шт.

21

N9804

SPRING

poppet, thermal bypass valve assembly

1шт.

22

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

(Replaces S5627) Thermal bypass valve assembly

2шт.

23

N9805

CAP

end, bypass valve ports, no longer available, order R51141 valve assembly, thermal bypass

2шт.

24

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

Thermal bypass valve assembly

4шт.

25

131-461

LOCK NUT,1/4"-20

Heavy hex, Replaces 131-86, thermal bypass valve assembly

4шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Outer, large, transmission oil filter

1шт.
