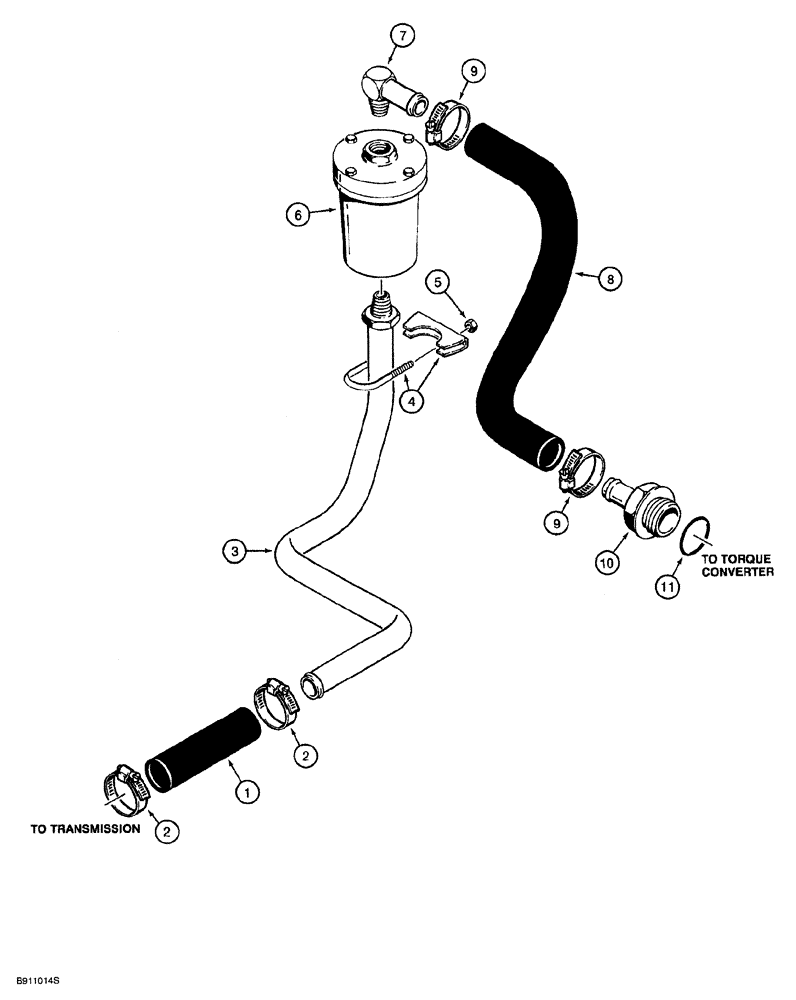

Запчасти Case 850G (6-28) - CRAWLER HYDRAULIC CIRCUIT - TRANSMISSION SUCTION LINE (07) - HYDRAULIC SYSTEM

1

R46690

HOSE, 153 mm (6 inch) long

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia., Replaces: 214-175

2шт.

3

R58697

TUBE,31.75 mm OD

transmission to suction filter

1шт.

4

L45901

CLAMP

, Serial Range: tube-frame

1шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

D35144

FILTER

FILTER, OIL ASSEMBLY transmission, suction line, parts list figure 6-32

1шт.

7

R57811

FITTING

ELBOW, 90 degree, special

1шт.

8

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Suction Filter to Torque Converter

1шт.

9

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adj., 1-1-7/8 inch dia., Replaces: 214-190

2шт.

10

R57462

ADAPTER

special, at torque converter, Includes: Ref. 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

S118465X

LARGE HOSE

HOSE,LARGE bulk, 32 (1-1/4) x 45 (1-3/4) x 4572 mm (180 inch) long

1шт.
