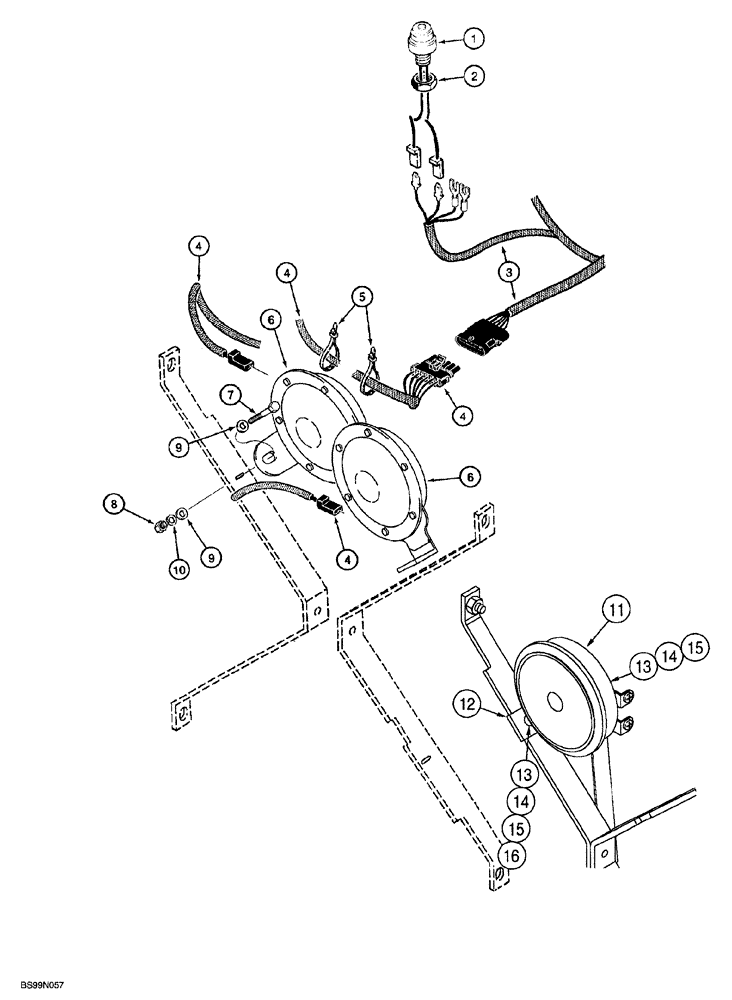

Запчасти Case 850G (4-31A) - HORN (MODELS WITH TWO HORNS STAMPED SPARTAN) (06) - ELECTRICAL SYSTEMS

1

R58727

SWITCH

push button, horn

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

3

107226A1

HARNESS

rear wiring, see Figure 4-14 for continuation of harness

1шт.

4

255899A1

HARNESS

front, used on models with horns stamped Spartan

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

4

255726A1

HARNESS

front, used on models with horns stamped Sparten

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining,15 inch

3шт.

6

253141A1

HORN

vibrator, 24 volt

2шт.

When stock is exhausted order 346582A1 horn service kit which includes the 7-14320 Instruction Sheet

1шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

346582A1

KIT

horn, Includes: Ref. 11 - 16

1шт.

11

346257A1

HORN

24 volt

1шт.

12

341258A1

BRACKET

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

492-11031

LOCK WASHER,5/16"

2шт.

16

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.
