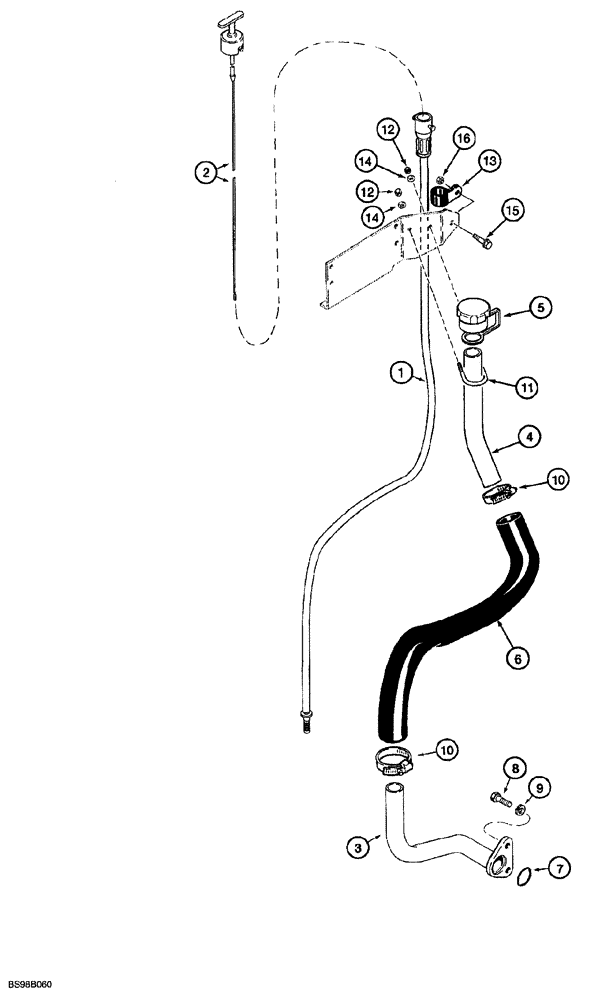

Запчасти Case 850G (2-05A) - ENGINE FILLER TUBE AND DIPSTICK (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

257004A1

TUBE,12.7 mm OD, 985.27 mm Length

dipstick

1шт.

2

257005A1

DIPSTICK

engine oil

1шт.

3

244167A1

TUBE,170, 110 mm Length

TUBE engine oil fill, lower

1шт.

244166A1

TUBE,5 mm ID, 38.1 mm OD, 270.9, 52.5 mm Length

ASSEMBLY engine oil fill, upper, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE engine oil fill

1шт.

5

NSS

NOT SOLD SEPARAT

CAP filler tube

1шт.

6

303782A1

HOSE,38.10 mm ID x 350.00 mm, SAE 20R1

Engine Oil, Fill

1шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj, 1-1/4 - 2-1/8 inch dia

2шт.

11

L73167

U-BOLT

upper engine oil fill tube to coolant recovery reservoir bracket

1шт.

12

231-1444

NUT,1/4"-20, GB

2шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

2шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

15

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

16

231-1445

NUT,5/16"-18, GB

1шт.
