Запчасти Case 850G (4-22) - CAB CONTROL PANEL AND WIRING (06) - ELECTRICAL SYSTEMS

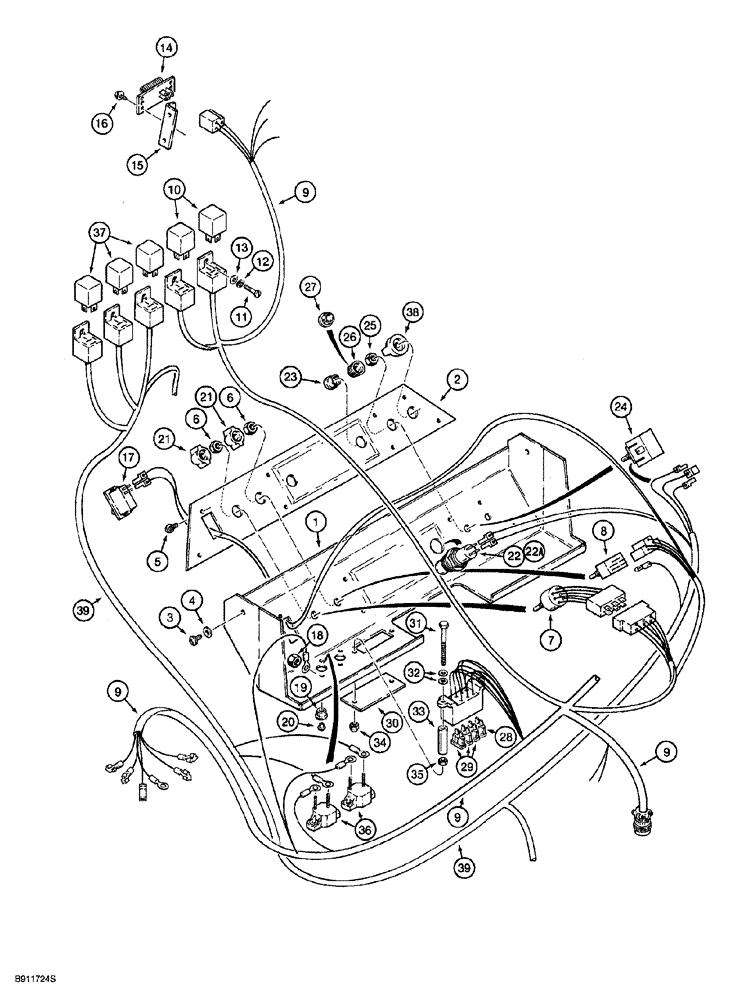

Схема запчастей Case 850G - (4-22) - CAB CONTROL PANEL AND WIRING (06) - ELECTRICAL SYSTEMS
39
8
9
31
16
10
9
9
39
28
37
30
9
6
27
24
26
19
21
15
13
4
21
2
11
23
32
34
38
5
20
35
3
33
18
22
1
36
22a
29
12
17
7
14
6
25

Артикул

Название

Примечание

Количество

1

1999459C1

BRACKET

PANEL control

1шт.

2

1999652C1

BEZEL

PLATE decal mounting, control panel, for 1999646C1 decal, see Figure 9-82, used on models with brown trim.

1шт.

2

198996A1

BEZEL

PLATE decal mounting, control panel, for 1999646C1 decal, see Figure 9-82, used on models with gray trim.

1шт.

3

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

hex socket button head, 1/4 NC x 5/8 inch

6шт.

4

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

6шт.

5

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

8шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, switch, 7/16 inch NC

2шт.

7

92115C2

SWITCH

WIPERS windshield

1шт.

8

168822C2

SWITCH

blower

1шт.

9

1546444C1

HARNESS

LAMPS cab and accessories

1шт.

10

198161A1

RELAY

mini electrical, accessories, 24 volt

2шт.

11

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

12

492-11010

LOCK WASHER,#10

2шт.

13

495-31022

WASHER,#10

2шт.

14

F44903

RESISTOR

blower speed, 24 volt

1шт.

15

R47848

SUPPORT

resistor mounting, mounts to blower housing

1шт.

16

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

hex head washer, self-tapping, No. 10-16 x 1/2 inch

4шт.

17

F45393

SWITCH

dome lamp, rocker

1шт.

18

232-1446

NUT,3/8"-16, GC

Harness to ground stud

1шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

2шт.

20

353-421

PLUG,Dome, .187" hole, Nylon

If used

4шт.

21

111282C1

KNOB

control knob, blower and wiper

2шт.

21

111282C1GV

KNOB

control knob, blower and wiper

2шт.

22

A187881

LAMP

LENS amber, No. 1820, air conditioner pressure warning, Includes: Ref. 22A

1шт.

22a

T39215

BULB

No. 1820

1шт.

23

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, if used

1шт.

24

A187954

SWITCH

SWITCH - air conditioning

1шт.

25

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC

1шт.

26

1999846C1

KNOB

air conditioning switch

1шт.

27

1999574C1

PLUG

nylon, 1/2 inch diameter, if used

1шт.

28

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

1шт.

29

A149800

FUSE,10 Amp

red, 10 ampere

3шт.

30

1999420C1

COVER

fuse block

1шт.

31

1999829C1

SCREW

hex, special, No. 10 NC x 2-3/4 inch

2шт.

32

495-31022

WASHER,#10

4шт.

33

1999515C1

SPACER

fuse block

2шт.

34

129-642

CROWN NUT,Crown, #10-24

dome, No. 10 NC, if used

2шт.

34

234-10410

NUT dome, No. 10 NC, if used

2шт.

35

230-42409

NUT,#10-24, GA

hex, No. 10 NC

2шт.

36

A187825

RELAY

circuit breaker, 10 ampere, air conditioning condenser blowers

2шт.

37

198161A1

RELAY

mini, heat and air conditioning, 24 volt

3шт.

38

1994720C1

KNOB

push on, heater control

1шт.

39

1546446C1

HARNESS

air conditioning

1шт.

Выбрано товаров: 43
