Запчасти Case 850G (4-20) - LAMP ASSEMBLY - FRONT AND REAR FLOOD (06) - ELECTRICAL SYSTEMS

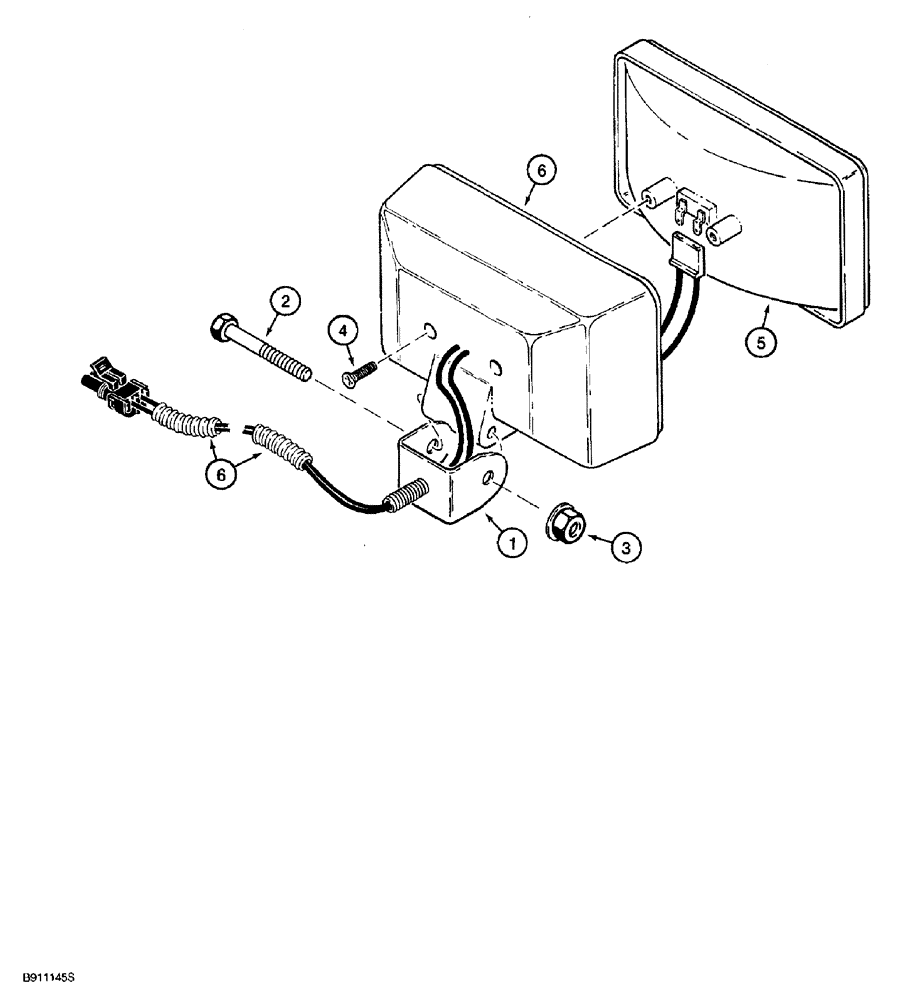

Схема запчастей Case 850G - (4-20) - LAMP ASSEMBLY - FRONT AND REAR FLOOD (06) - ELECTRICAL SYSTEMS
6
1
6
5
3
2
4

Артикул

Название

Примечание

Количество

229488A1

HEADLIGHT,24V

KIT flood lamp, 24 volt front driving and rear flood, includes instructions

4шт.

1

N8347

SUPPORT

lamp, Replaces: A187913

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces 413-532)

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

103653A1

HEADLIGHT,24V, 60W

BULB sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING amp, includes wires and connector

1шт.

7

56698R1

WIRE CONNECTOR

butt splice, not shown

1шт.

Выбрано товаров: 8
