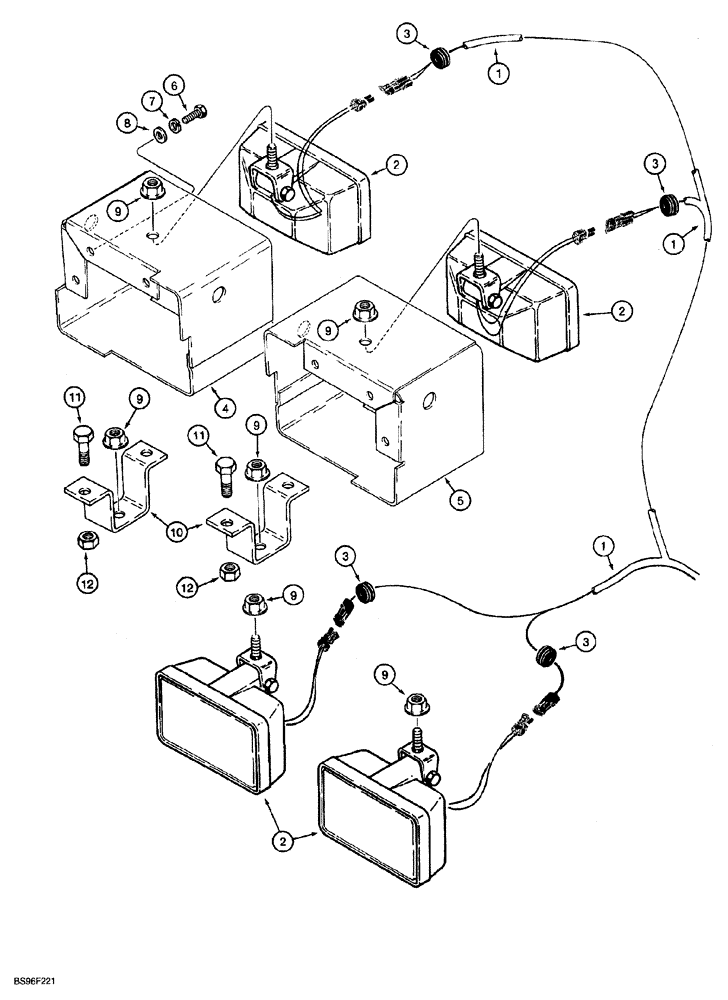

Запчасти Case 850G (4-18) - LAMPS AND WIRING - MODELS WITH ROPS CAB, WITH OR WITHOUT SCREEN (06) - ELECTRICAL SYSTEMS

1

1546444C1

HARNESS

cab lamps and accessories, see Figure 4-22

1шт.

2

229488A1

HEADLIGHT,24V

KIT flood lamp, 24 volt, front and rear, parts list figure 4-20

4шт.

3

1546464C1

GROMMET

harness

4шт.

4

1999472C1

GUARD

lamp mounting bracket, left-hand front

1шт.

5

1999471C1

GUARD

lamp mounting bracket, right-hand front

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

102181A1

LARGE PLATE

PLATE, LARGE lamp mounting bracket, models with a brush guard, used on models with brown trim.

2шт.

10

182893A1

BRACKET

lamp mounting, models with a brush guard, used on models with gray trim

2шт.

11

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

12

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.
