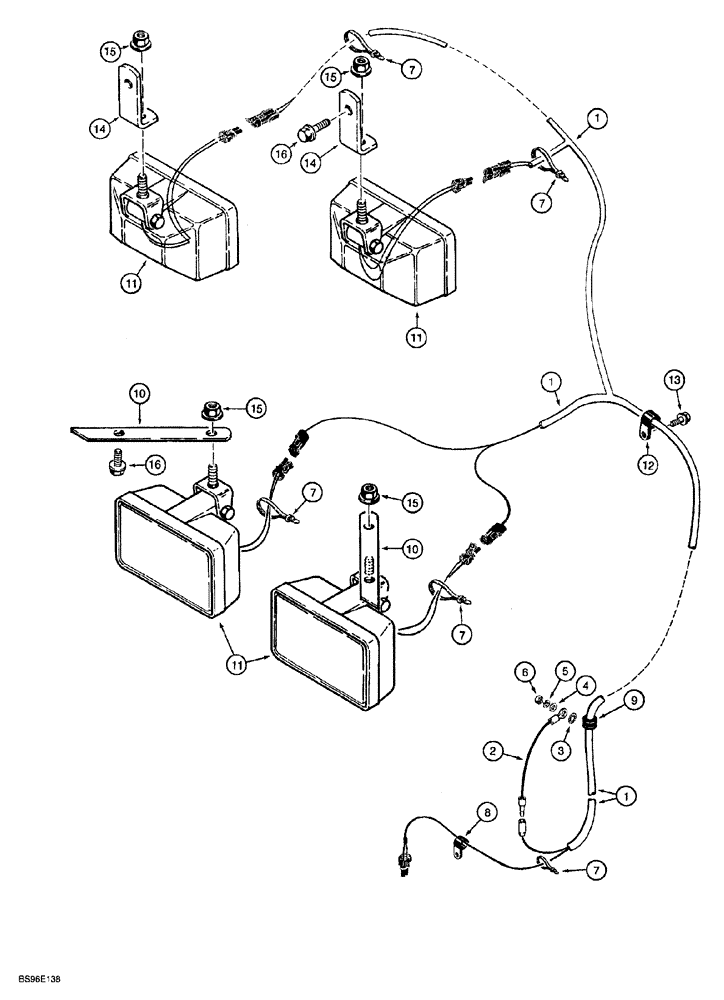

Запчасти Case 850G (4-16) - LAMPS AND WIRING - MODELS WITH ROPS CANOPY, WITH OR WITHOUT SCREEN (06) - ELECTRICAL SYSTEMS

1

R58399

HARNESS

front, to lamps, used on models with brown trim

1шт.

1

181424A1

HARNESS

front, to lamps, used on models with gray trim

1шт.

2

R47747

ELECTRICAL WIRE

WIRE ground, harness

1шт.

3

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

4

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

5шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID, on hydraulic reservoir

1шт.

9

D42106

GROMMET

rubber, harness through hydraulic reservoir cover

1шт.

10

R53887

SUPPORT

rear lamp, used on models with brown trim, use rear screen mounting hardware, on models without rear screen use (2) Ref. 16, 160-106 bolts

2шт.

10

185919A1

BRACKET

rear lamp, used on models with gray trim, use rear screen mounting hardware, on models without rear screen use (2) Ref. 16, 160 -106 bolts

2шт.

11

229488A1

HEADLIGHT,24V

KIT flood lamp, 24 volt, front and rear, parts list figure 4-20

4шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type

6шт.

13

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

14

R27714

BRACKET

lamp mounting, front, used on models with brown trim

2шт.

14

186861A1

BRACKET

lamp mounting, front, used on models with gray trim

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2-4шт.
