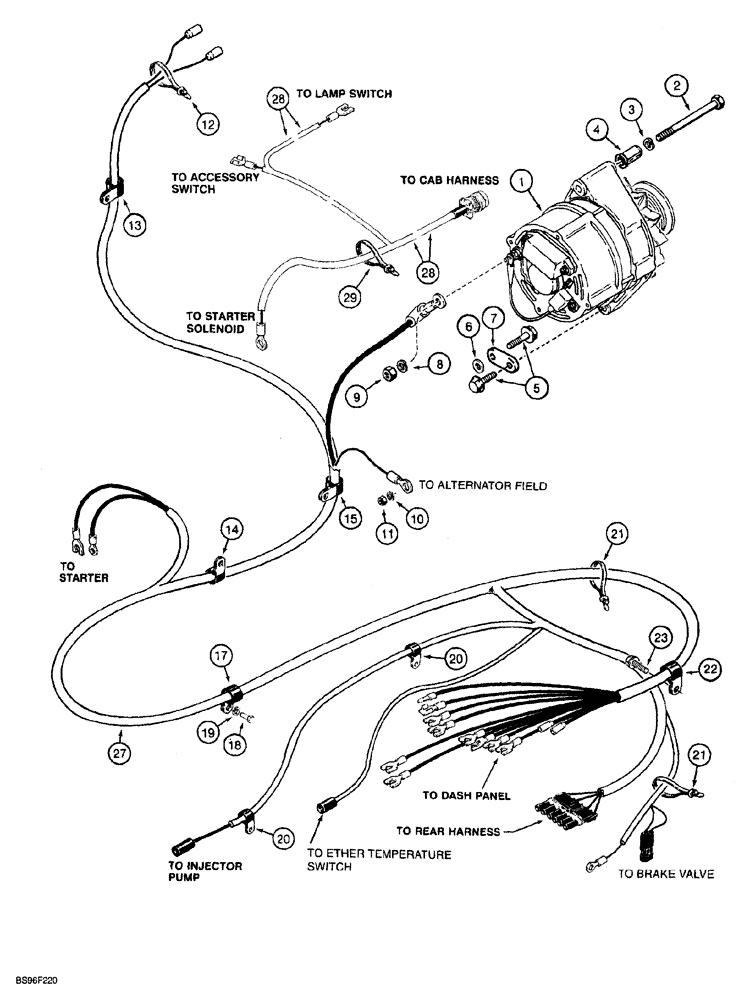

Запчасти Case 850G (4-12) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (06) - ELECTRICAL SYSTEMS

1

A187916

ALTERNATOR,24V, 45A

ASSEMBLY engine, parts list figure 4-04

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

4

J902469

SPACER

alternator mounting, upper

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

Heavy

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, special, 3/8 inch, hardened

1шт.

7

J903089

SUPPORT

alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

892-11005

LOCK WASHER,M5

1шт.

11

825-1405

NUT,M5, Cl 8

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, if used

1шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-Type

1шт.

14

49836

CLAMP

P-type, 1/2 inch ID

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

17

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

2шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

19

892-11012

LOCK WASHER,M12

2шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

22

D34033

CLAMP

P-type, 1-3/16 inch ID

1шт.

23

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

27

126270A1

HARNESS

front wiring, used on models with horns stamped Delco Remy

1шт.

27

255899A1

HARNESS

front, used on models with horns stamped Spartan

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

27

255726A1

HARNESS

front, used on models with horns stamped Spartan

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

27

255726A2

HARNESS

front, used on models with one horn

1шт.

28

R58600

HARNESS

cab models, starter solenoid to mam cab harness

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.
