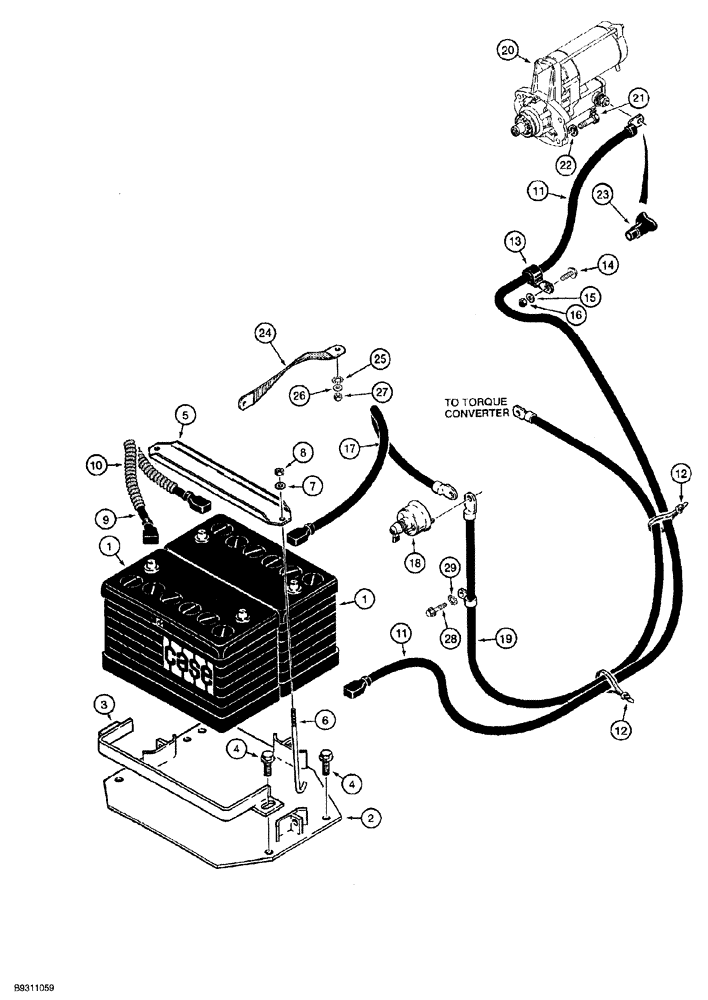

Запчасти Case 850G (4-10) - BATTERY MOUNTING, CABLES, AND STARTER (06) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

2шт.

2

R51652

SUPPORT

battery mounting

1шт.

3

R51654

SUPPORT

battery retaining, rear

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

3шт.

5

R46490

BRACKET

battery hold down, upper

1шт.

6

R27652

ROD

J-type

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

8

231-1445

NUT,5/16"-18, GB

2шт.

9

177504A1

CABLE

jumper, between batteries, Includes: Ref. 10

1шт.

10

R51835

LOOM

CONDUIT jumper cable, 127 mm (5 inch) long

1шт.

11

R57555

CABLE

positive, Serial Range: battery,-starter

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

13

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

twist, positive battery cable

1шт.

14

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

15

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

flat, 25/64 x 3/4 x 1/16 inch

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R47203

CABLE

negative battery

1шт.

18

R52278

SWITCH

master disconnect

1шт.

19

R58075

CABLE

battery ground, includes clamp, use torque converter mounting, Serial Range: hardware-ground.

1шт.

20

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSEMBLY engine, parts list figure 4-02

1шт.

20

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

20

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

20

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

21

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

22

892-11010

LOCK WASHER,M10

3шт.

23

L126713

BOOT

plastic, battery cable at starter

1шт.

24

D73383

STRAP

ground, cab models, uses existing master disconnect switch hardware

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

26

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

27

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

1шт.

28

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

flange, hex, 3/8 NC x 3/4 inch, grade 8

1шт.

29

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

R44806

LOOM

CONDUIT bulk, 2248 mm (88-1/2 inch) long

1шт.
