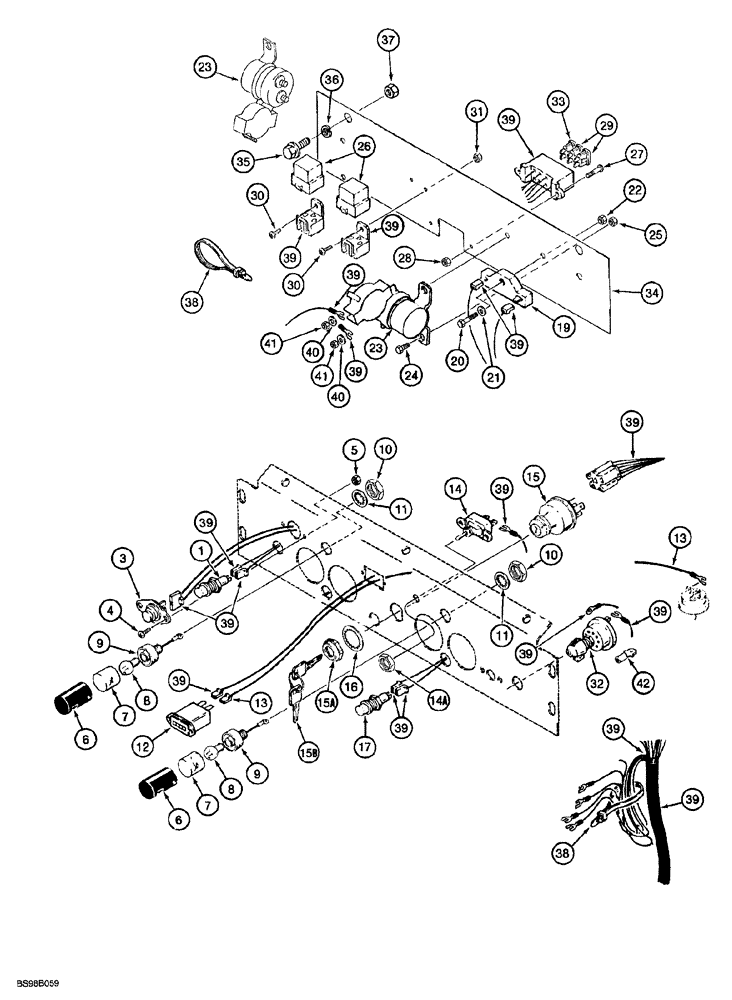

Запчасти Case 850G (4-08) - INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

1

A187881

LAMP

amber lens, No. 1820, alternator indicator

1шт.

2

T39215

BULB

No. 1820, not shown

1шт.

3

D67872

SWITCH

push button, cold start

1шт.

4

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

86625057

NUT,#10-24, GB

2шт.

185383A1

ASSEMBLY

KIT instrument panel lamp, includes instructions, Replaces: D35815

2шт.

6

D37918

COVER

lamp

1шт.

7

D37919

LENS

lamp

1шт.

8

71421

BULB,R5W, 12V, 5W

No. 67, Replaces: No. 623, which is not used

1шт.

9

NSS

NOT SOLD SEPARAT

BODY includes wire

1шт.

10

D39095

NUT

special

1шт.

10a

377630C1

CONNECTOR, ELEC

CONNECTOR LAMP ASSEMBLY, not shown

1шт.

11

93-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

12

L107631

METER

HOUR engine

1шт.

13

R27252

HARNESS

WIRE hourmeter to pressure switch

1шт.

14

R50405

SWITCH

TOGGLE fuel shutoff

1шт.

14a

N13588

SPECIAL NUT

special

1шт.

R57312

IGNITION SWITCH

ASSEMBLY no longer available, order D134737

1шт.

D134737

IGNITION SWITCH

ASSEMBLY switch, ignition, includes keys, if used

1шт.

282775A1

IGNITION SWITCH

ASSEMBLY includes keys 1964831C2, if used

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH ignition

1шт.

15a

101760A1

SPECIAL NUT

hex, special, ignition switch, brass, R57312 switch

1шт.

15a

A77314

NUT

hex, special, ignition switch, chrome plated, D134737 switch or 282775A1 switch

1шт.

15b

A77313

SET OF 2 KEYS

metal without padding; R57312 switch or D134737 switch

1шт.

15c

1964831C2

IGNITION KEY

padded, 282775A1 switch, not shown

1шт.

16

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

17

A187881

LAMP

LENS amber, No. 1820

1шт.

18

T39215

BULB

No. 1820, not shown

1шт.

19

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

22

231-1444

NUT,1/4"-20, GB

1шт.

23

120398A1

RELAY

24 volt, starter, (2) used on models with emission engines

1 2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

25

231-1444

NUT,1/4"-20, GB

2-4шт.

26

S243589

RELAY

24 volt, brake

2шт.

27

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

28

86625057

NUT,#10-24, GB

2шт.

29

A149800

FUSE,10 Amp

red, 10 ampere

2шт.

30

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

31

86625057

NUT,#10-24, GB

2шт.

32

R54064

IGNITION SWITCH

lamp

1шт.

33

A149802

FUSE

yellow, 20 ampere

1шт.

34

R58073

PANEL

instrument mounting

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

34a

255688A1

PANEL

instrument mounting

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

35

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

flange, hex, 3/8 NC x 3/4 inch, grade 8

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

39

126270A1

HARNESS

front wiring, used on models with horns stamped Delco Remy

1шт.

39

255899A1

HARNESS

front, used on models with horns stamped Spartan

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

39

255726A1

HARNESS

front, used on models with horns stamped Spartan, Crawler P I N JJG0254005 through JJG025

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

39

255726A2

HARNESS

front, used on models with one horn

1шт.

40

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

41

825-1406

NUT,M6, Cl 8

2шт.

42

223-74

SPADE TERMINAL

straight spade, SAE No H203, No 8, instrument panel lamps to flood lamp switch, used on models with ROPS canopy, if used

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
