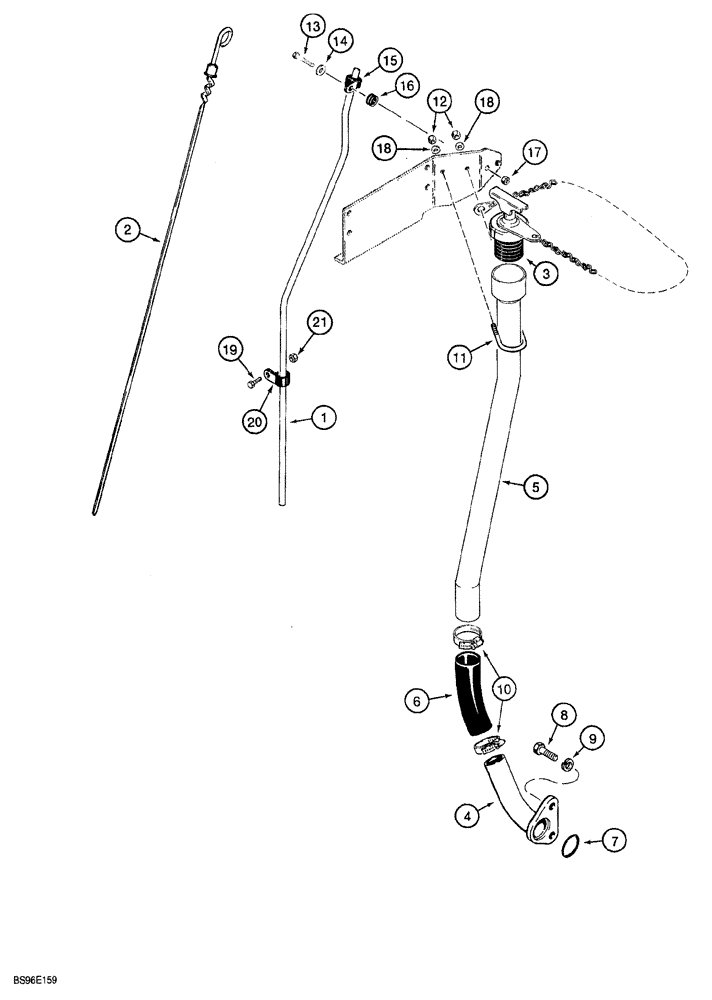

Запчасти Case 850G (2-04) - ENGINE FILLER TUBE AND DIPSTICK (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE

1

R57347

TUBE,9.52 mm OD x 182, 835 mm L

dipstick

1шт.

2

R47937

DIPSTICK

engine oil

1шт.

3

L115504

CAP

TUBE filler, includes chain

1шт.

4

R53750

TUBE,24 mm L

engine oil fill, lower

1шт.

5

R52622

TUBE,38.1 mm OD x 670, 100 mm L

engine oil, fill, upper

1шт.

6

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj, 1-1/4 - 2-1/8 inch dia

2шт.

11

L73167

U-BOLT

upper engine oil fill tube to coolant recovery reservoir bracket

1шт.

12

231-1444

NUT,1/4"-20, GB

2шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

16

R39516

GROMMET

rubber, vibration dampener

1шт.

17

231-1445

NUT,5/16"-18, GB

1шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

20

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

1шт.
