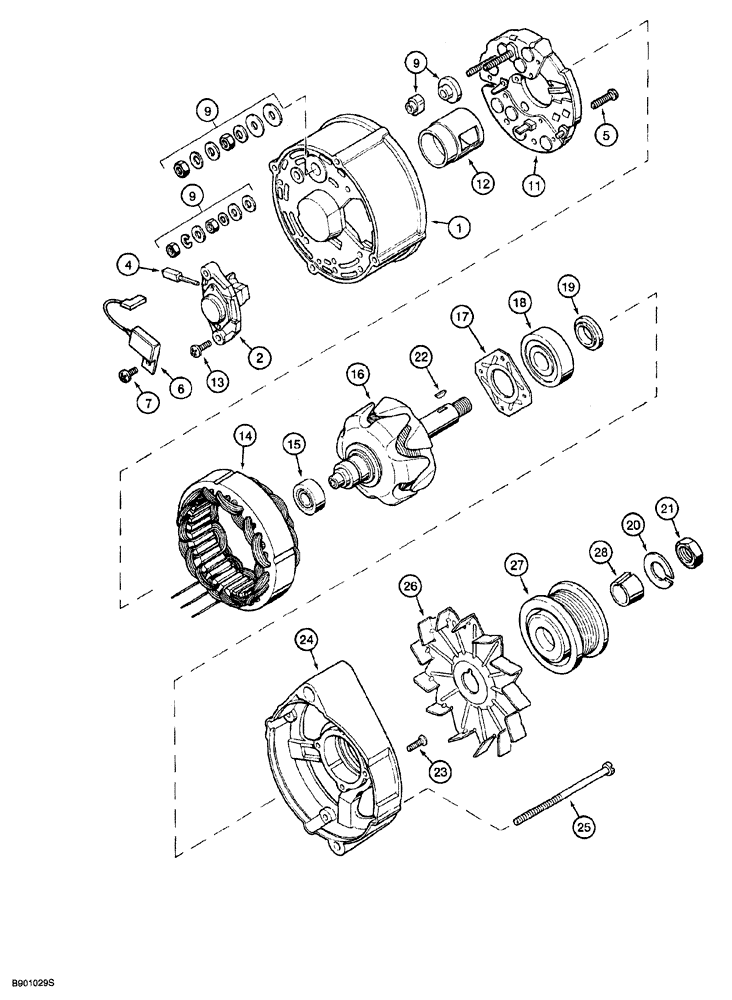

Запчасти Case 850G (4-04) - ALTERNATOR - A187916 (06) - ELECTRICAL SYSTEMS

A187916

ALTERNATOR,24V, 45A

ASSEMBLY engine, for 24 volt system, Bosch No. 0 120 488 206, type K1-28V 3/45A, Includes: Ref. 1 - 25

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

ASSEMBLY remanufactured, components parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 25

1шт.

AC187916

CORE-ALTERNATOR

RETURN NUMBER alternator core, use this part number to return alternator for credit when using a remanufactured assembly, Includes: Ref. 1 - 25

1шт.

1

A187996

HOUSING

END collector ring

1шт.

2

A187998

REGULATOR

voltage, Includes: Ref. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH ASSEMBLY alternator

1шт.

5

A186194

SCREW,M4 x 18mm

flange, hex, special, rectifier bridge retaining, Replaces: A187898 and 1530431C1

2шт.

6

3079134R1

CAPACITOR

alternator

1шт.

7

1964969C1

SCREW

Special, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187997

RECTIFIER

BRIDGE alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

hex flange, special, voltage regulator retaining, Replaces: A1 87907

2шт.

14

A188000

STATOR

ASSEMBLY alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

ball, rotor, collector ring end, Replaces: A187908

1шт.

16

A187502

ROTOR ASSY.

ALTERNATOR

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187916 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A191103

COVER

drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

slotted, special

4шт.

26

221425R1

FAN

alternater

1шт.

Not included with alternator assembly. Order separately.

1шт.

27

J908560

PULLEY

DRIVE

1шт.

Not included with alternator assembly. Order separately.

1шт.

28

J908563

RETAINER

PULLEY

1шт.

Not included with alternator assembly. Order separately.

1шт.
