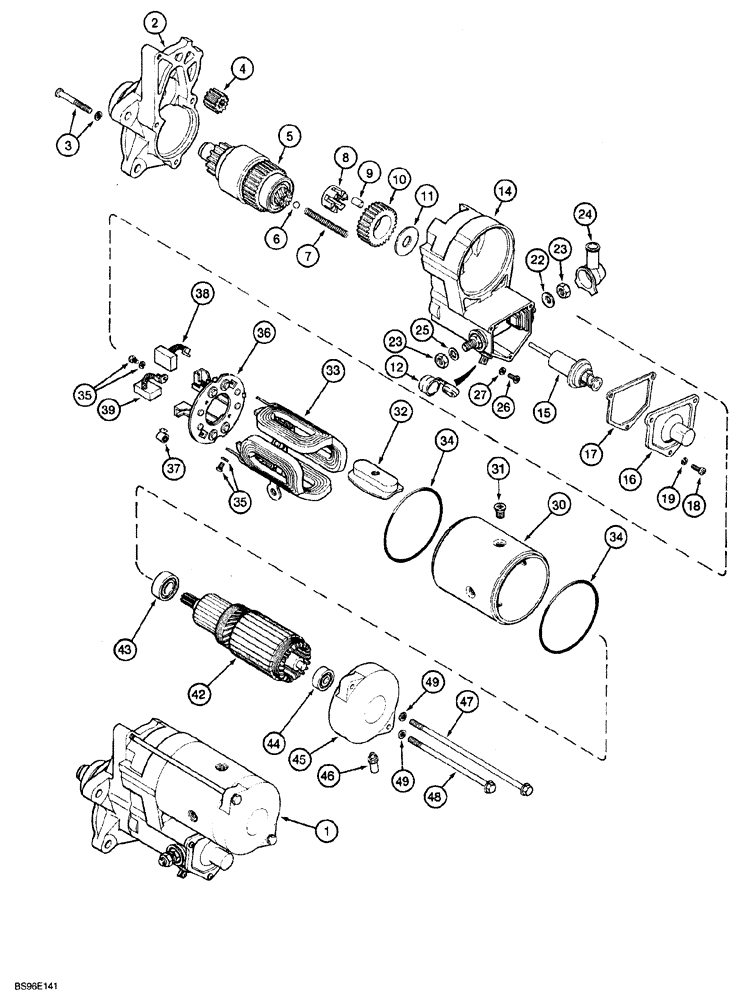

Запчасти Case 850G (4-02) - STARTER (06) - ELECTRICAL SYSTEMS

1

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSEMBLY engine, Nippondenso No. 128000-2561, Includes: Ref. 2 - 49

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

A49797

HOUSING

starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

ASSEMBLY with washer

3шт.

4

A49809

PINION

GEAR

1шт.

5

1981576C1

CLUTCH

ASSEMBLY starter drive, components not serviced separately, Replaces: A49802

1шт.

6

211-1311

BALL,11/32" Dia

chrome alloy steel, grade 200

1шт.

7

A47232

SPRING

compression, 2-13/16 inch free length

1шт.

8

A47236

RETAINER

roller bearing

1шт.

9

A47235

ROLLER BEARING

pinion bearing

5шт.

10

A49810

GEAR

pinion idler

1шт.

11

A47234

WASHER

thrust

1шт.

12

104589A1

BUSHING

INSULATION

1шт.

14

104598A1

SOLENOID SWITCH

Assy, magnetic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER retaining

3шт.

22

A10454

WAVE WASHER

spring

1шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

A49805

COVER

terminal

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

terminal, special, 5 x 8 mm

1шт.

27

892-11005

LOCK WASHER,M5

1шт.

30

A49804

HOUSING

ASSEMBLY starter field, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL field

1шт.

34

A49812

SEAL

housing

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

ASSEMBLY with washer, brush retaining

4шт.

36

A49806

BRUSH HOLDER

ASSEMBLY, Includes: Ref. 37

1шт.

37

A47249

SPRING

brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

starter

2шт.

39

A49808

COMMUTATOR BRUSH

starter

2шт.

42

A49801

ROTOR

ASSEMBLY armature, starter, Includes: Ref. 43 and 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

ARMATURE, 15 x 35 x 11 mm

1шт.

44

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator end

1шт.

45

298255A1

HOUSING

FRAME commutator end, Replaces: A49811

1шт.

46

A49803

BREATHER

COVER frame end

1шт.

47

104593A1

FLANGE BOLT

hex flange, 206 mm long

1шт.

48

104594A1

FLANGE BOLT

hex flange, 144 mm long

1шт.

49

A49815

LOCK WASHER

lock

2шт.
