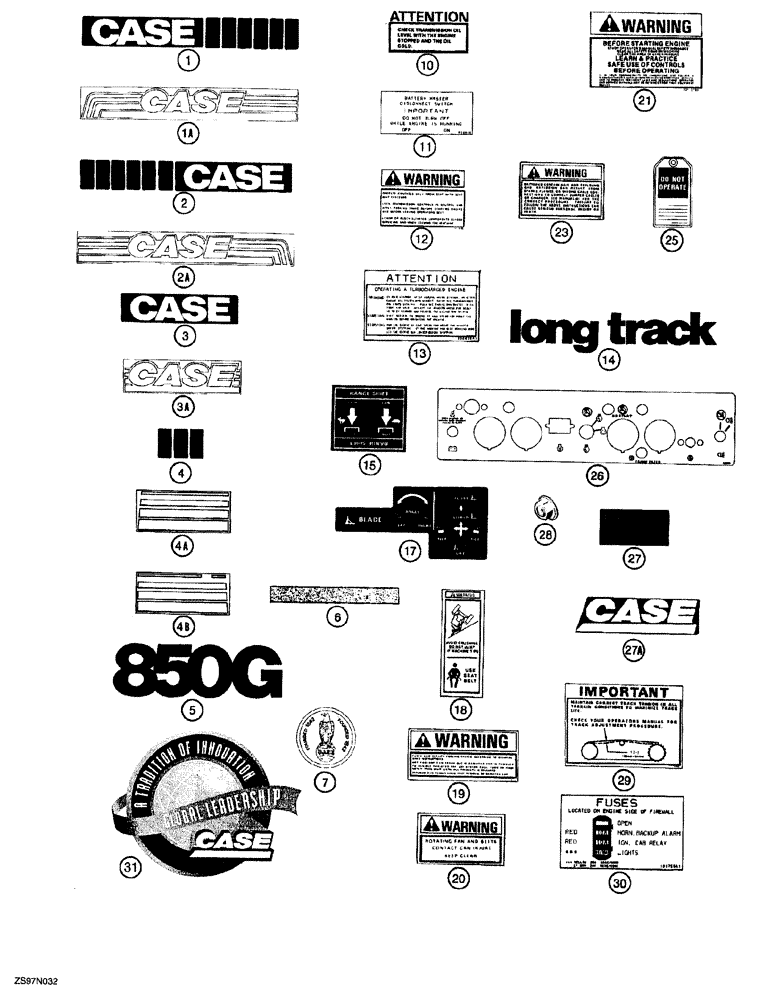

Запчасти Case 850G (9-80) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

R48496

DECAL

CASE with treads, left-hand, 152 mm (6 inch)

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

1a

187852A1

DECAL

CASE with stripes, left-hand

1шт.

2

R48495

DECAL

CASE with treads, right-hand, 152 mm (6 inch)

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

2a

187853A1

DECAL

CASE with stripes, right-hand

1шт.

3

R48489

DECAL

CASE, 152 mm (6 inch), used on models with brown trim

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

3a

187851A1

DECAL

CASE with stripes, rear, used on models with gray trim

1шт.

4

139703A1

DECAL

treadmarks, 152 mm (6 inch)

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

4a

187849A1

DECAL

stripes, left-hand

1шт.

4b

187850A1

DECAL

stripes, right-hand

1шт.

5

132562A1

DECAL

850G, model number, used on models with brown trim

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

5

178500A1

DECAL

850G, model number, used on models with gray trim

2шт.

6

D80270

ANTI-SKID STRIP,635mm / 25 Inch

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

7

A180055

CAP ASSY.

INSERT, Case Gobe and Eagle, if used

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

10

R50495

DECAL

Attention, check the transmission oil level

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

11

R58448

DECAL

battery master disconnect

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

12

321-4188

DECAL

Warning, operate controls only from seat

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

13

102436A1

DECAL

Attention, operating turbocharged engine

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

14

R56135

DECAL

long track, used on models with brown trim

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

14

178501A1

DECAL

long track, used on models with gray trim

2шт.

15

R58391

DECAL

range shift pattern, used on models with brown trim

1шт.

15

178502A1

DECAL

range shift pattern, used on models with gray trim

1шт.

17

R58571

DECAL

contol pattern, dozer blade, lift, angle and tilt, used on models with brown trim

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

17

178505A1

DECAL

control pattern, dozer blade, lift, angle and tilt, used on models with gray trim

1шт.

18

321-7030

WARNING DECAL

Do Not Jump - Use Seat Belt

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

19

321-6672

DECAL

Warning, check and service cooling system

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

20

321-3596

DECAL

Warning, rotating fan and belts

3шт.

Part of Decal Kit, P/N 134002A1

1шт.

21

321-3705

DECAL

Warning, before starting engine

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

22

133963A1

DECAL

master maintenance schedule, not shown

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

23

321-6714

DECAL

Warning, batteries contain acid and explosive gas

2шт.

Part of Decal Kit, P/N 134002A1

1шт.

25

321-4614

TAG

TAG do not operate

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

26

R58270

DECAL

PANEL instrument, brown

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

26

178504A1

DECAL

instrument panel, black

1шт.

27

321-4739

EMBLEM

used on models with brown trim

1шт.

27a

186989A1

EMBLEM

EMBLEM, Case, used on models with gray trim

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type

2шт.

29

R57776

DECAL

Important, maintain correct track tension

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

30

101759A1

DECAL

fuses

1шт.

Part of Decal Kit, P/N 134002A1

1шт.

31

279386A1

DECAL

a tradition of innovation, global leadership, no longer used, has no replacement

2шт.

134002A1

KIT

DECAL used on models with brown trim only, Includes: Ref. No. 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 25, 26, 29, 30 and on page 9-83, no longer available, order components separately

1шт.
