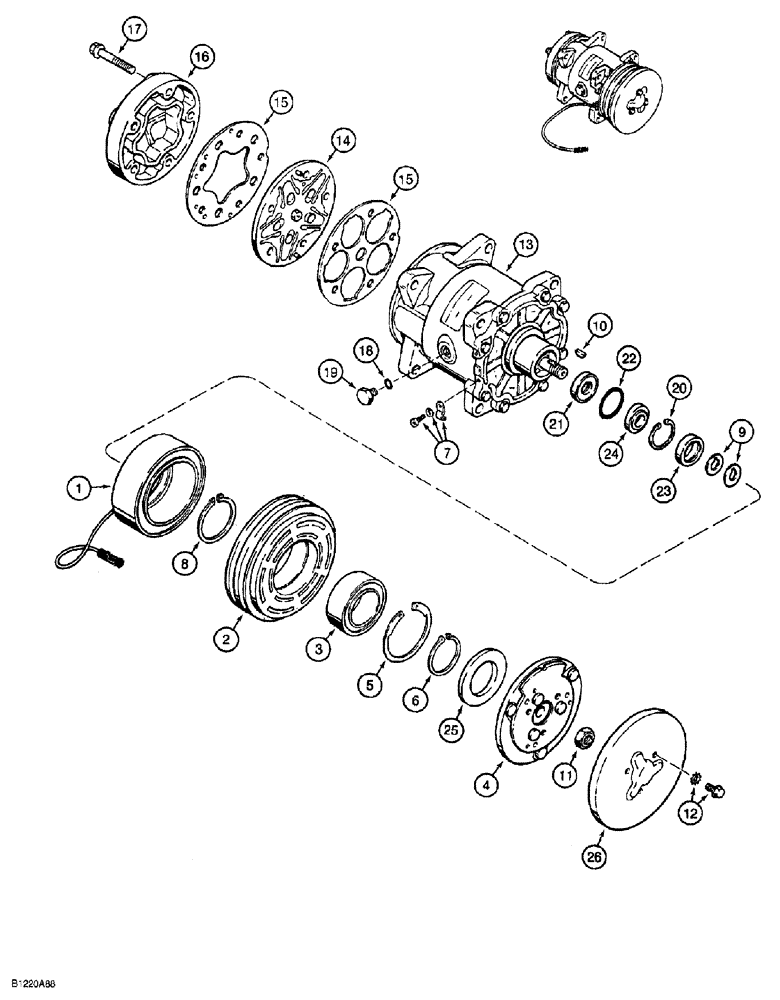

Запчасти Case 850G (9-78) - AIR CONDITIONING SYSTEM - COMPRESSOR ASSEMBLY - 97179C2 (05) - UPPERSTRUCTURE CHASSIS

97179C2

COMPRESSOR

ASSEMBLY air conditioning, used with R-12 refrigerant, brown cab, Includes: Ref. 1 - 26

1шт.

1977652C1

CLUTCH

ASSEMBLY compressor, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

ASSEMBLY field, 24 volt, complete

1шт.

2

NSS

NOT SOLD SEPARAT

ASSEMBLY pulley, drive, two groove, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

accessory, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP lead wire, includes hardware

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY shaft

1шт.

11

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK compressor

1шт.

14

NSS

NOT SOLD SEPARAT

ASSEMBLY plate, valve, Includes: Ref. 15

1шт.

15

A49668

GASKET KIT

PLATE valve, set of two

1шт.

16

1958959C1

COVER

HEAD cylinder, Includes: Ref. 15

1шт.

17

A49669

SCREW,Cylinder

hex flange, special

5шт.

18

A49666

O-RING

rubber

3шт.

19

A49667

PLUG

hex, filler

1шт.

A49665

SEAL KIT

SEAL, Includes: Ref. 20 - 23

1шт.

20

A49664

CIRCLIP

RING snap

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

23

NSS

NOT SOLD SEPARAT

RING felt

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

25

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

dust, bearing

1шт.

26

1958961C1

COVER

dust, clutch

1шт.
