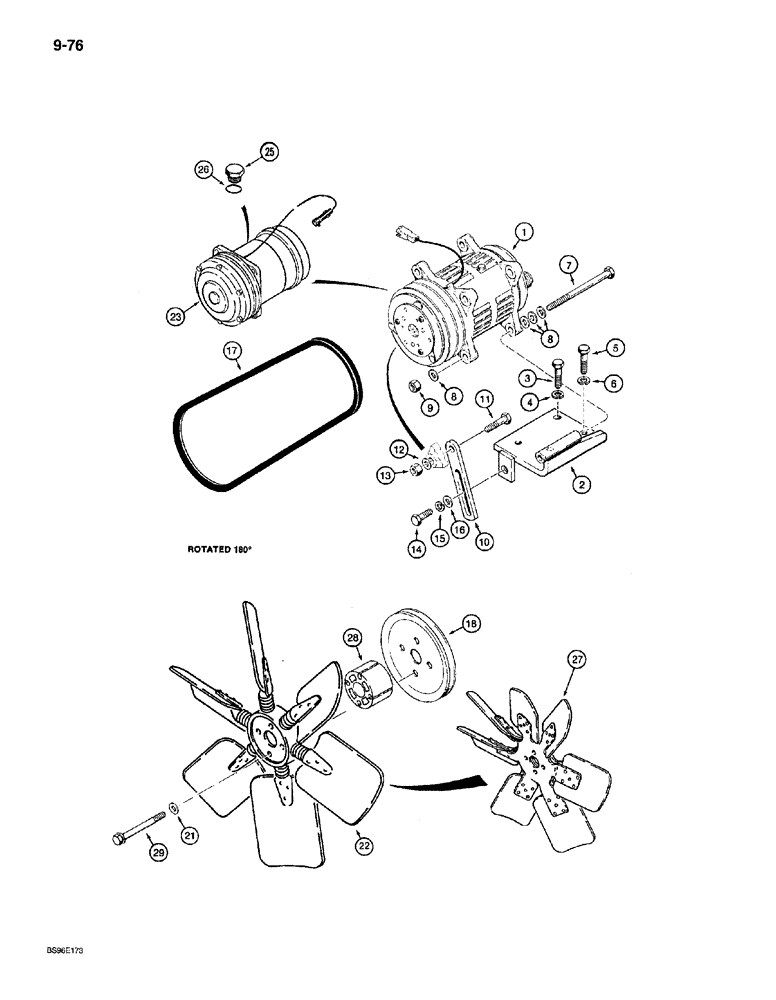

Запчасти Case 850G (9-76) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING (05) - UPPERSTRUCTURE CHASSIS

1

97179C2

COMPRESSOR

ASSEMBLY air conditioning, used with R-12 refrigerant, brown cab, parts list figure 9-78

1шт.

2

84711C1

SUPPORT

compressor mounting

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Replaces 814-10040

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

84716C1

SUPPORT

STRAP adjusting, compressor

1шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

Compressor drive

1шт.

18

A189155

PULLEY

compressor drive

1шт.

19

A184545

SPACER

fan, used with Ref. 22, A173564 reversible fan, if used

1шт.

20

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Heavy, Used with Ref 22, A173564 reversible fan, if used

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

22

A173564

FAN

reversible, 6 blade, used with Ref. 19, A184545 spacer and Ref. 20, 854-10070 bolt, if used

1шт.

1990760C1

COMPRESSOR

ASSEMBLY air conditioning, used with HFC 134A refrigerant, gray cab, Includes: Ref. 23 - 26

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

850G (1/94-), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

23

NSS

NOT SOLD SEPARAT

COMPRESSOR air conditioning, components not serviced separately, Order: 1990760C1 compressor assembly

1шт.

24

138886A1

CLUTCH

COMPRESSOR not shown

1шт.

25

A49667

PLUG

hex

1шт.

26

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

27

A173557

FAN

pusher, 6 blade, used with Ref. 28, A184546 spacer and Ref. 29, 814-10090 bolt, if used

1шт.

28

A184546

SPACER

fan, 60 mm long, used with Ref. 27, A173557 pusher fan, if used

1шт.

29

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

Used with Ref. 27, A173557 Pusher fan, if used

4шт.
