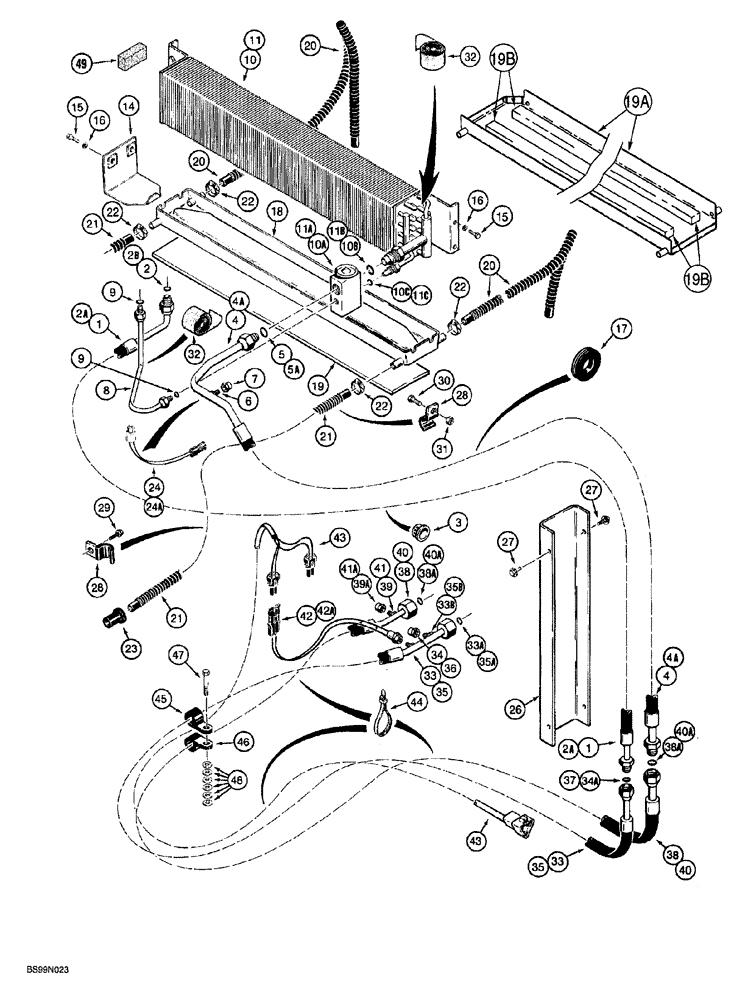

Запчасти Case 850G (9-72) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1

1975773C1

HOSE ASSY.

1840 mm (72-7/16 inch) long, attaches to cab roof condenser tube Ref. 20 and to hose on chassis Ref. 33, used with R-12 refrigerant, brown cabs, Includes: Ref. 2

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

2a

1975773C2

HOSE ASSY.

1840 mm (72-7/16 inch) long, attaches to cab roof condenser tube Ref. 20A and to hose on chassis Ref. 35, used with HFC 134A refrigerant, gray cab, Includes: Ref. 2B

1шт.

2b

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

3

353-482

PLUG

BUSHING snap, 1-3/16 inch ID

1шт.

4

1999508C1

HOSE ASSY.

1427 mm (56-3/16 inch) long, suction, evaporator core expansion valve upper port to hose on chassis Ref. 38, used with R-12 refrigerant, brown cabs

1шт.

4a

135525A1

HOSE ASSY.

1427 mm (56-3/16 inch) long, suction, evaporator core expansion valve upper port to hose on chassis Ref. 40, used with HFC 134A refrigerant, gray cabs, Includes: Ref. 5 - 7

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Used with 1999508C1 hose, Ref. 4

1шт.

5a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, used with 135525A1 hose, Ref. 4A

1шт.

6

1250594C2

CORE

VALVE core, Replaces: 1250594C1

1шт.

7

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, female, 7/16-20 inch 45 degree flare

1шт.

8

1999507C1

TUBE

cab roof to evaporator core lower port on expansion valve, attaches to receiver-drier tube Ref. 18 or 19A , Includes: Ref. 9

1шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

10

1340490C2

EVAPORATOR

CORE ASSEMBLY evaporator, used with R-12 refrigerant, brown cab, no longer available, order 1340490C4, Includes: Ref. 10A - 10C

1шт.

10a

98370C3

VALVE

expansion, no longer available, order Ref. 11A, 1990756C2

1шт.

10b

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

10c

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

11

1340490C4

EVAPORATOR

ASSEMBLY core, used with HFC 134A refrigerant, gray cab, Replaces: 1340490C3, Includes: Ref. 11A - 11C

1шт.

11a

1990756C2

VALVE

expansion

1шт.

11b

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

11c

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

R44085

SUPPORT

PANcondensation, if used

2шт.

15

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

16

492-11025

LOCK WASHER,1/4"

8шт.

17

D132895

GROMMET

suction hose

1шт.

18

1971366C2

CONTAINER

PAN condensation, no longer available, Order: 253002A1

1шт.

19

1974623C1

FOAM

CELL open, used with 1971366C2 pan

1шт.

19a

252628A1

PAN

ASSEMBLY evaporator, Replaces: 1971366C2, Includes: Ref. 19B

1шт.

19b

253008A1

SEAL

pressure sensitive peel-off backing

2шт.

20

R51356

HOSE, 508 mm (20 inch) long

2шт.

21

R44128

HOSE, 1524 mm (60 inch) long

2шт.

22

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj, 1/4 - 5/8 inch dia., if used

4шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, If used

4шт.

23

F44790

VALVE

check, rubber, rear drain hose

2шт.

24

92153C1

SWITCH

low pressure, used with R-12 refrigerant, brown cab

1шт.

24a

122579A1

SWITCH, A/C LOW PRES

Low, used with HFC 134A refrigerant, gray cab

1шт.

26

1999374C1

COVER

hoses

1шт.

27

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

4шт.

28

R49939

CLAMP

drain hose

10шт.

29

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

6шт.

30

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

31

86625057

NUT,#10-24, GB

4шт.

32

83822C1

TAPE

610 mm (24 inch) long

1шт.

33

1975768C1

HOSE

3330 mm (131-1/8 inch) long, discharge, compressor to cab, used with R-12 refrigerant, brown cab, Includes: Ref. 33A - 34A

1шт.

33a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

33b

1250594C2

CORE

VALVE, Replaces: 1250594C1

1шт.

34

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, female, 7/16-20 inch, 45 degree flare

1шт.

34a

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

35

135519A1

HOSE ASSY.

3330 mm (131-1/8 inch) long, discharge, compressor to cab, used with HFC 134A refrigerant, gray cab, Includes: Ref. 35A - 37

1шт.

35a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

35b

1250594C2

CORE

VALVE, Replaces: 1250594C1

1шт.

36

122554A1

CAP

Sealing

1шт.

37

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

F64508X

LARGE HOSE

HOSE,LARGE bulk, 1 1 (7/16) ID x 30480 mm (1200 inch) long

1шт.

1954475C1

ROLL

TAPE bulk, 63 5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

38

1975769C1

HOSE

3267 mm (128-5/8 inch) long, suction, compressor to cab, used with R-12 refrigerant, brown cab, Includes: Ref. 38A - 39A

1шт.

38a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

39

1250594C2

CORE

VALVE, Replaces: 1250594C1

1шт.

39a

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, female, 7/16-20 inch, 45 degree flare

1шт.

40

135520A1

HOSE ASSY.

3267 mm (128-5/8 inch) long, suction, compressor to cab, used with HFC 134A refrigerant, gray cab, Includes: Ref. 40A - 41A

1шт.

40a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

2шт.

41

1250594C2

CORE

VALVE, Replaces: 1250594C1

1шт.

41a

122553A1

CAP

sealing

1шт.

42

234921A1

SENSOR

SWITCH high pressure, air conditioning, used with R-12 refrigerant, brown cab, Replaces: 92038C1

1шт.

42a

232948A1

SWITCH, A/C HIGH PRE

400 psi, Used with HFC 134A refrigerant, Gray cab, Replaces 1999925

1шт.

43

R58601

HARNESS

cab, air conditioning, high pressure switch and compressor to main cab harness

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

45

49891

CLAMP

P-type, 1 inch ID

2шт.

46

D43364

CLAMP

P-type, 1-1/4 inch ID

2шт.

47

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

48

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

49

1999749C1

FOAM

adhesive backed, 80 mm (3-1/4 inch) long

2шт.

1999750C1

SEAL

FOAM adhesive backed, bulk sheet, 38 (1-1/2) wide x 15240 (600) long x 15 mm (1 inch) thick

1шт.
