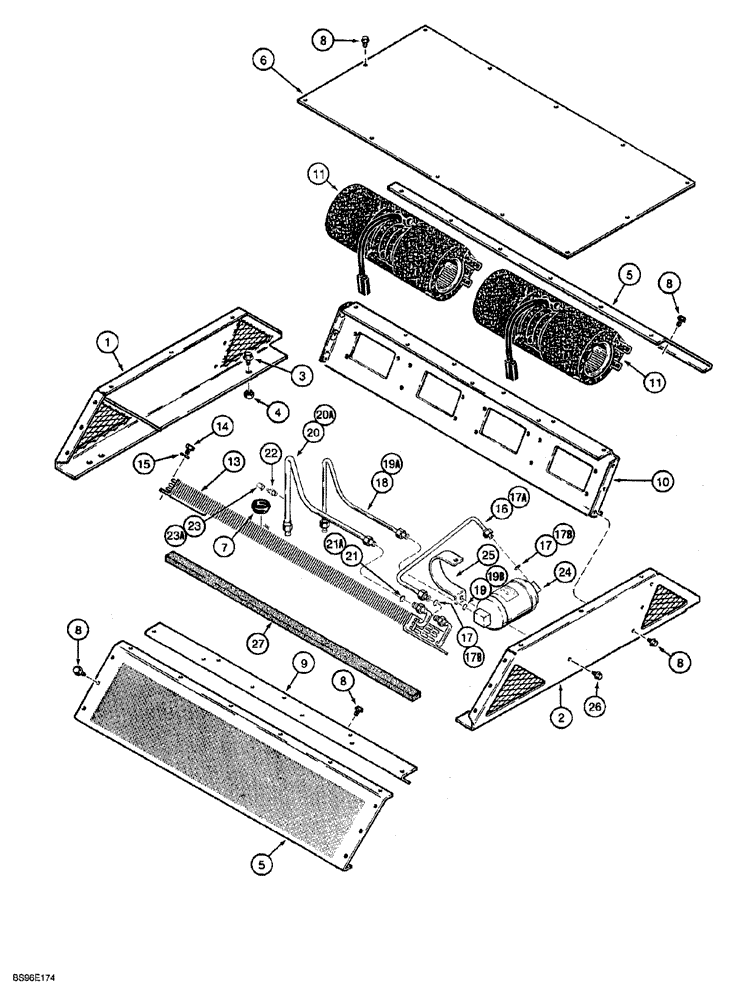

Запчасти Case 850G (9-70) - AIR CONDITIONING SYSTEM - COVERS AND MOUNTING - ABOVE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1

R48827

PANEL, SIDE

with screens, left-hand

1шт.

2

1999418C1

PANEL

with screens, right-hand side

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

4

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.

5

R48829

SIEVE

SHIELD perforated, front and rear

2шт.

6

1999421C1

COVER

air conditioning system

1шт.

7

1546466C1

GROMMET

hose and wire through roof, 25 mm (1 inch) dia.

3шт.

8

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

46шт.

9

R48831

SUPPORT

rear shield mounting

1шт.

10

R49055

SUPPORT

blower mounting

1шт.

11

1999670C1

BLOWER ASSY.

CONDENSER air conditioning, 24 volt, parts list and mounting figure 4-36

2шт.

13

1999513C1

CONDENSER

CORE air conditioning

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

492-11025

LOCK WASHER,1/4"

4шт.

16

1975771C1

TUBE

lower outlet tube on condenser to receiver-drier, used with R-12 refrigerant, brown cab, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

17a

1975771C2

TUBE

lower outlet tube on condenser to receiver-drier, used with HFC 134A refrigerant, gray cab, Includes: Ref. 17B

1шт.

17b

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

18

1975772C1

TUBE

receiver-drier to roof, attaches to tube at evaporator core expansion valve lower port, Ref. 8 on figure 9-72, used with R-12 refrigerant, brown cab, Includes: Ref. 19

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

19a

1975772C2

TUBE

receiver-drier to roof, attaches to tube at evaporator core expansion valve lower port, Ref. 8 on figure 9-72, used with HFC 134A refrigerant, gray cab, Includes: Ref. 19B

1шт.

19b

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

20

1999676C1

TUBE

discharge, roof to upper inlet tube on condenser, attaches to Ref. 1 hose on figure 9-72, used with R-12 refrigerant, brown cab

1шт.

20a

135529A1

TUBE,0.5" OD, 266, 198 mm Length

discharge, roof to upper inlet tube on condenser, attaches to Ref. 2A hose on figure 9-72, used with HFC 134A refrigerant, gray cab, Includes: Ref. 21 - 23A

1шт.

21

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

Used with 1999676C1 tube, Ref 20

1шт.

21a

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, used with 135529A1 tube, Ref. 20A

1шт.

22

1250594C2

CORE

VALVE, Replaces: 1250594C1

1шт.

23

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare, used with 1999676C1 tube, Ref. 20

1шт.

23a

122554A1

CAP

Sealing, used with 135529A1 tube, Ref. 20A

1шт.

24

143469C2

RESERVOIR

RECEIVER-DRIER air conditioning system, used with R-12 refrigerant only, no longer available, for service order 1990758C2 receiver-drier, brown cab

1шт.

24

1990758C2

RECEIVER-DRYER

air conditioning, used with R-12 or HCF 134A refrigerant, brown/gray cabs

1шт.

25

1999510C1

STRAP

receiver-drier

1шт.

26

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

27

1999748C1

FOAM

adhesive backed, 25 (1) x 50 (2) x 1040 mm (41 inch) long

2шт.
