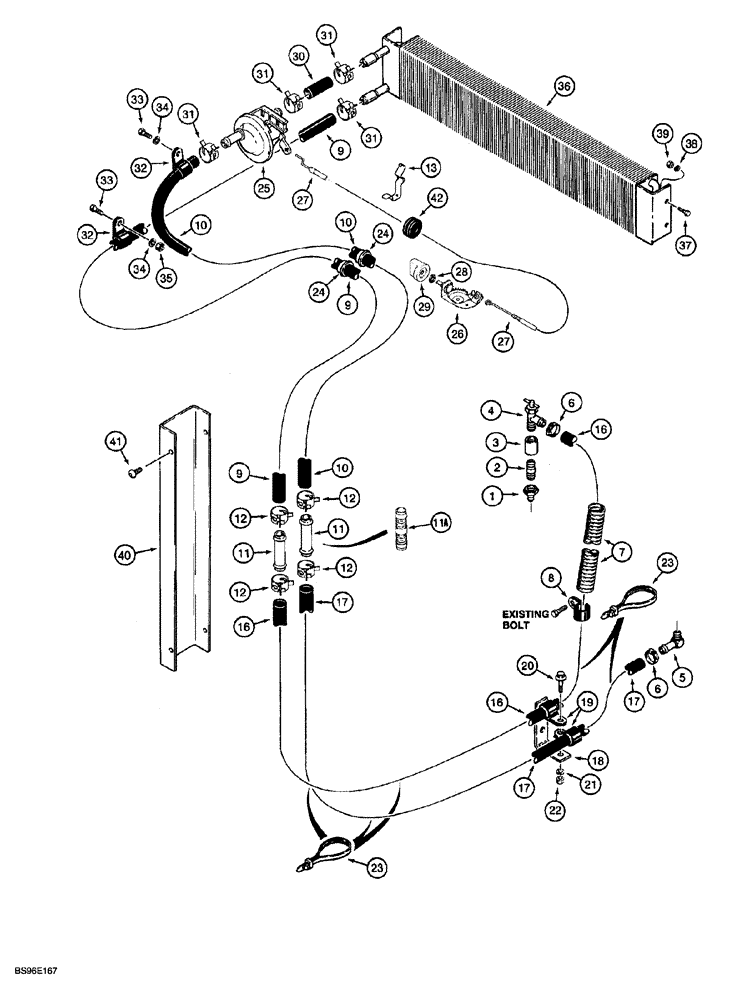

Запчасти Case 850G (9-68) - CAB HEATING SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

2

221-1165

JUNCTION

NIPPLE straight, 3/8 PT x 2-1/2 inch

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

pipe, 3/8 inch

1шт.

4

301803R1

SHUT-OFF VALVE

heater supply hose

1шт.

5

R50454

FITTING

ELBOW special, 90 degree

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

7

S121023

CONDUIT

inlet hose, 400 mm (15-3/4 inch) long

1шт.

8

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Inlet hose, P-type, Uses existing bolt on engine oil cooler

1шт.

9

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Inlet supply to heater core

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Outlet, Return from flow control valve

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

11

S104739

TUBE,0.625" OD x 3" L

hose splice, no longer available, Order: 1301342C1 adapter

2шт.

11a

1301342C1

FITTING

hose splice, straight, special

2шт.

12

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

13

1954626C1

SPRING CLIP

CLIP retaining, heater cable

1шт.

16

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

Inlet, Heater supply from engine

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

17

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Outlet, Heater return to engine

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

18

R51414

SUPPORT

heater hoses, use existing mounting hardware

1шт.

19

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

2шт.

20

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

24

353-482

PLUG

BUSHING snap, 1-3/16 inch ID

2шт.

25

1331087C1

HEATER VALVE

control, flow, heater

1шт.

1999504C1

CONTROL

ASSEMBLY heater, includes cable, Includes: Ref. 26 - 28

1шт.

26

1999606C1

CONTROL

heater, no longer available, Order: 1999504C1 assembly for service

1шт.

27

1999607C1

CABLE

heater control, no longer available, Order: 1999504C1 control assembly for service

1шт.

28

109311H

JAM NUT

hex, jam, 7/16-28 NF

1шт.

29

1994720C1

KNOB

CONTROL heater, push on

1шт.

30

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

Flow Control Valve to Heater Core

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

31

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

32

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Heater supply and return hoses, Clamp on return hose attaches to tapped block in cab

2шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

F45204

HEAT-EXCHANGER

CORE

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

38

492-11025

LOCK WASHER,1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

4шт.

40

1999374C1

COVER

hoses

1шт.

41

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

4шт.

42

248-1336

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

rubber, 3/4 inch groove diameter

1шт.

97252CX

HOSE

bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.
