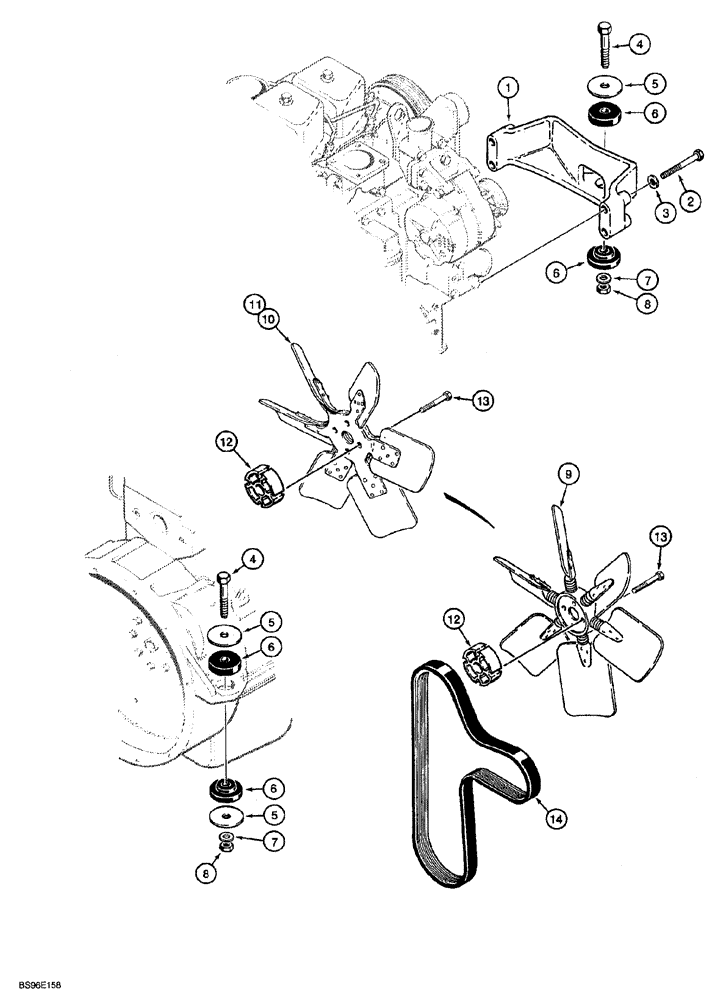

Запчасти Case 850G (2-02) - ENGINE MOUNTING, FAN, AND FAN BELT (01) - ENGINE

1

A170985

BRACKET

engine support, front

1шт.

2

A171690

BOLT

hex, special, 12-175 x 85 mm, class 10.9

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

113-2632

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

flat, special, 5/8 inch

5шт.

6

R49921

RUBBER MOUNTING

insulator, engine and flywheel housing

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

A173564

FAN

reversible, standard, 6 blade

1шт.

10

A173557

FAN

pusher, 6 blade, if used

1шт.

11

A173559

FAN

puller, 6 blade, if used

1шт.

12

A184544

SPACER

fan, 31.75 mm (1-1/4 inch) wide

1шт.

These parts are used on models without air conditioning. See figure 9-76 for fan, spacer, and hardware used on models with air conditioning.

1шт.

13

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

flange, hex, special, 10 - 1.5 x 50 mm

4шт.

These parts are used on models without air conditioning. See figure 9-76 for fan, spacer, and hardware used on models with air conditioning.

1шт.

14

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan

1шт.
