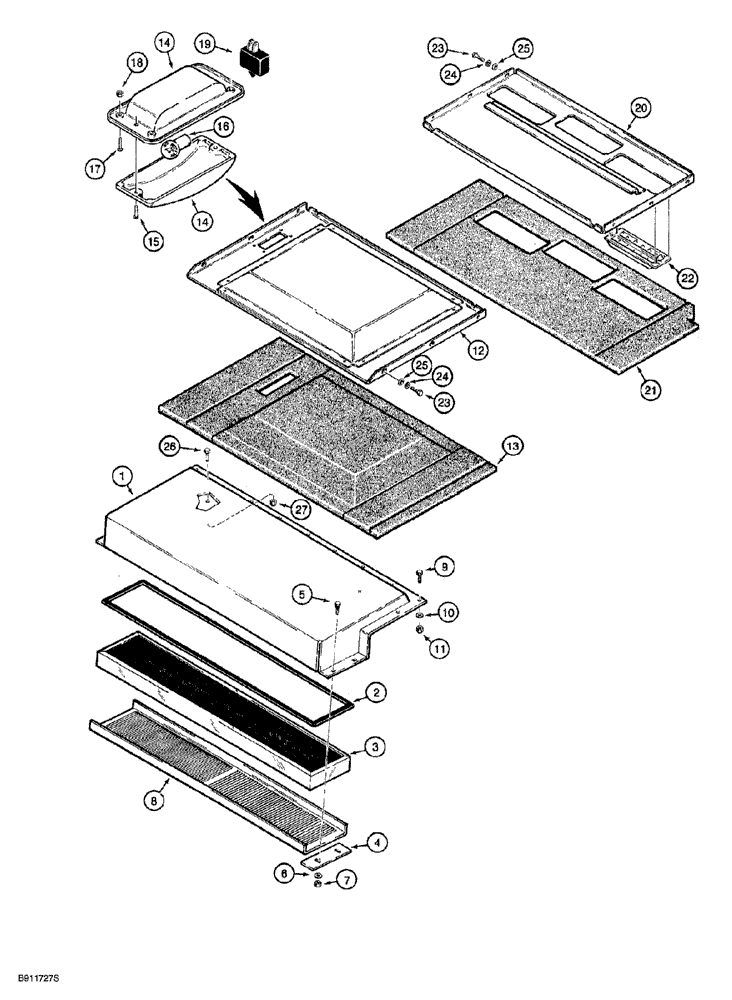

Запчасти Case 850G (9-64) - CAB ASSEMBLY - AIR FILTER AND HEADLINERS (05) - UPPERSTRUCTURE CHASSIS

1

R44782

HOUSING

air filter, brown

1шт.

1

189640A1

HOUSING

air filter, gray

1шт.

2

F63669

SEAL

rubber, housing

1шт.

3

F64318

AIR FILTER

air filter

1шт.

4

R44783

LARGE PLATE

PLATE, LARGE PLATE retainer, air filter, used with R44782 housing

2шт.

4

195544A1

PLATE

PLATE retainer, air filter, used with 189640A1 housing

2шт.

5

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

carriage, 1/4 NC x 1 inch, grade 2

4шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

231-1444

NUT,1/4"-20, GB

4шт.

8

R46136

SIEVE

LOUVER filter, brown

1шт.

8

189641A1

PANEL

LOUVER filter, gray

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

11шт.

10

F42778

WASHER

special

11шт.

11

231-1445

NUT,5/16"-18, GB

11шт.

12

1999844C1

COVER ASSY

rear, heater lines

1шт.

13

1999843C1

PAD

COVER rear, brown

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

13

187464A1

PAD

COVER rear, gray

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

14

F89772

LAMP

dome, service with R54198, Includes: Ref. 15 and 16

1шт.

15

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

machine, round head slotted, No. 8 NC x 1/4 inch

2шт.

16

B50217

BULB

12 volt, No. 93, not used in this application, Replace with: D71459, 24 volt bulb

1шт.

16

D71459

LAMP

No. 1591, 24 volt, order separately, not included with F89772 dome lamp

1шт.

17

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

machine, flat head slotted, No. 8 NC x 5/8 inch

4шт.

18

225-14108

NUT,#8-32

hex, No. 8 NC

4шт.

19

F45393

SWITCH

rocker, dome lamp, see Ref. 17, Figure 4-22

1шт.

20

R47840

COVER

FRONT for louvers

1шт.

21

R47841

NOISE PROTECTION

PAD front cover, brown

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

21

187465A1

PAD

COVER front, gray

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

22

F98149

GUARD

LOUVER air vent

3шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

24

492-11025

LOCK WASHER,1/4"

10шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

10шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

231-1445

NUT,5/16"-18, GB

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
