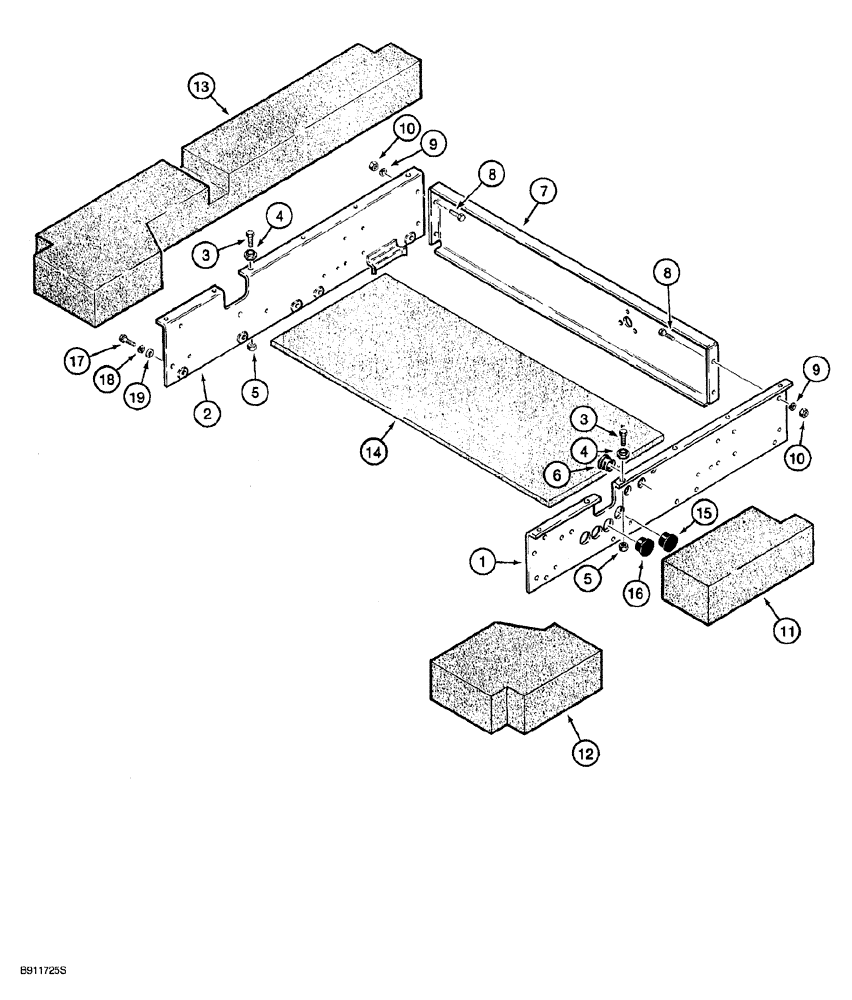

Запчасти Case 850G (9-62) - CAB ASSEMBLY - ROOF PADS AND ACCESSORY MOUNTING BRACKETS (05) - UPPERSTRUCTURE CHASSIS

1

338887A1

PANEL ASSY.

BRACKET mounting, right-hand, Replaces: 1999506C1

1шт.

2

338888A1

PANEL ASSY.

BRACKET mounting, left-hand, Replaces: R47836

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

4

F42778

WASHER

special

12шт.

5

231-1445

NUT,5/16"-18, GB

12шт.

6

1546466C1

GROMMET

25 mm (1 inch) dia, cab and air conditioner harness

2шт.

7

1999376C1

PANEL

BRACKET windshield wiper mounting, front

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

492-11031

LOCK WASHER,5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

1999821C1

PAD

vinyl covered, brown, right-hand, front

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

11

187462A1

PAD

vinyl covered, gray, right-hand, front

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

12

1999822C1

PAD

vinyl covered, brown, right-hand, rear

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

12

187463A1

PAD

vinyl covered, gray, right-hand, rear

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

13

R51267

NOISE PROTECTION

PAD brown vinyl covered, left-hand

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

13

187466A1

PAD

vinyl covered, gray, left-hand

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

14

R44171

NOISE PROTECTION

PAD foam, heat barrier, attaches to cab roof above heater and/or air conditioning cores

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

15

353-422

PLUG,Dome, 1.250" hole, Nylon

Hose lines, Used on models without air conditioning, If used

1шт.

16

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch, used on models without air conditioning, if used

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

18

492-11025

LOCK WASHER,1/4"

10шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

10шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
