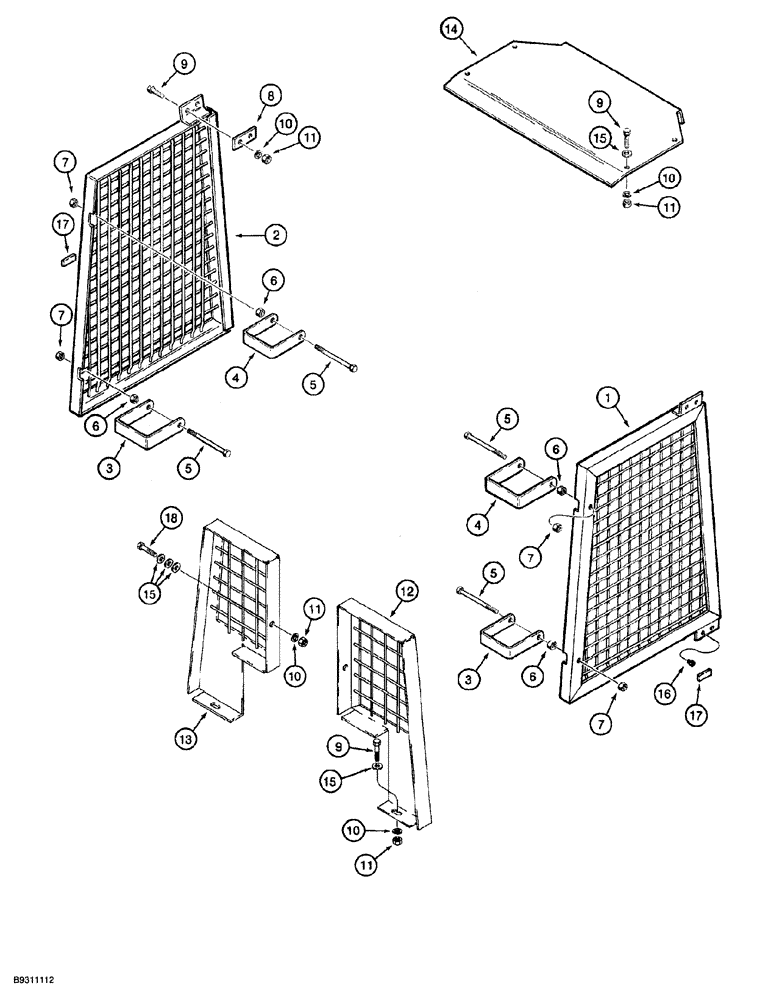

Запчасти Case 850G (9-48) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

R58827

SCREEN

side, brown, right-hand

1шт.

1

181832A1

SCREEN

sde, gray, right-hand

1шт.

2

R58826

SCREEN

side, brown, left-hand

1шт.

2

181831A1

SCREEN

side, gray, left-hand

1шт.

3

F43755

CLAMP

screen, brown, lower rear

2шт.

3

181733A1

CLAMP

screen gray, lower rear

2шт.

4

F44447

CLAMP

screen, brown, upper rear

2шт.

4

181747A1

CLAMP

screen, gray, upper rear

2шт.

5

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.

8

F44446

NOZZLE HOLDER

SPACER brown, upper, side screen, front

2шт.

8

177383A1

CLAMP

SPACER gray, upper, side screen, front

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

10шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

12шт.

12

128793A1

SCREEN

front, brown, right-hand

1шт.

12

181731A1

SCREEN

front, gray, right-hand

1шт.

13

128933A1

SCREEN

front, brown, left-hand

1шт.

13

181732A1

SCREEN

front, gray, left-hand

1шт.

14

F44448

CABLE EXTENSION

canopy, brown

1шт.

14

181749A1

DEFLECTOR

EXTENSION gray, canopy

1шт.

15

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

14шт.

16

R38089

CUSHION ASSY.

BUMPER rubber, side screens, lower

4шт.

17

R58828

PAD

RUBBER screen, if used

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.
