Запчасти Case 850G (1-16) - PICTORIAL INDEX - RIPPER HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

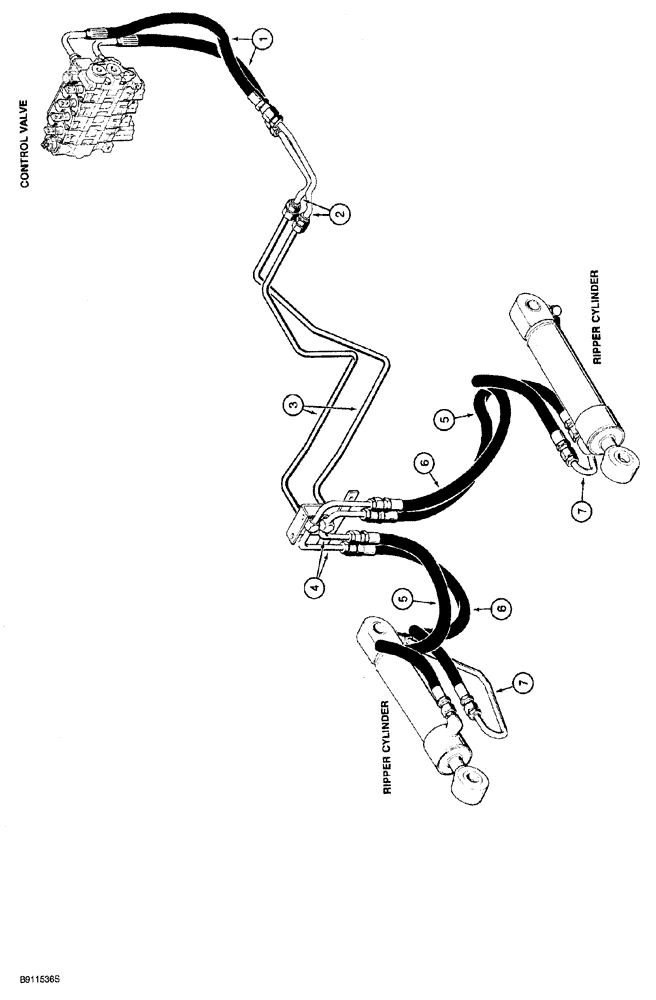

Схема запчастей Case 850G - (1-16) - PICTORIAL INDEX - RIPPER HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX
2
7
5
6
4
6
1
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hoses at Control Valve

8-21шт.

2

Tubes at Control Valve Hoses Intermediate Tubes from Control Valve

8-21шт.

3

Tubes at Cylinder Hoses

8-21шт.

4

Tubes at Cylinder Hoses

8-23шт.

5

Hoses to Ripper Cylinder Rod End

8-23шт.

6

Hoses to Tubes at Ripper Cylinder Closed End

8-23шт.

7

Tubes to Closed End of Ripper Cylinders

8-23шт.
