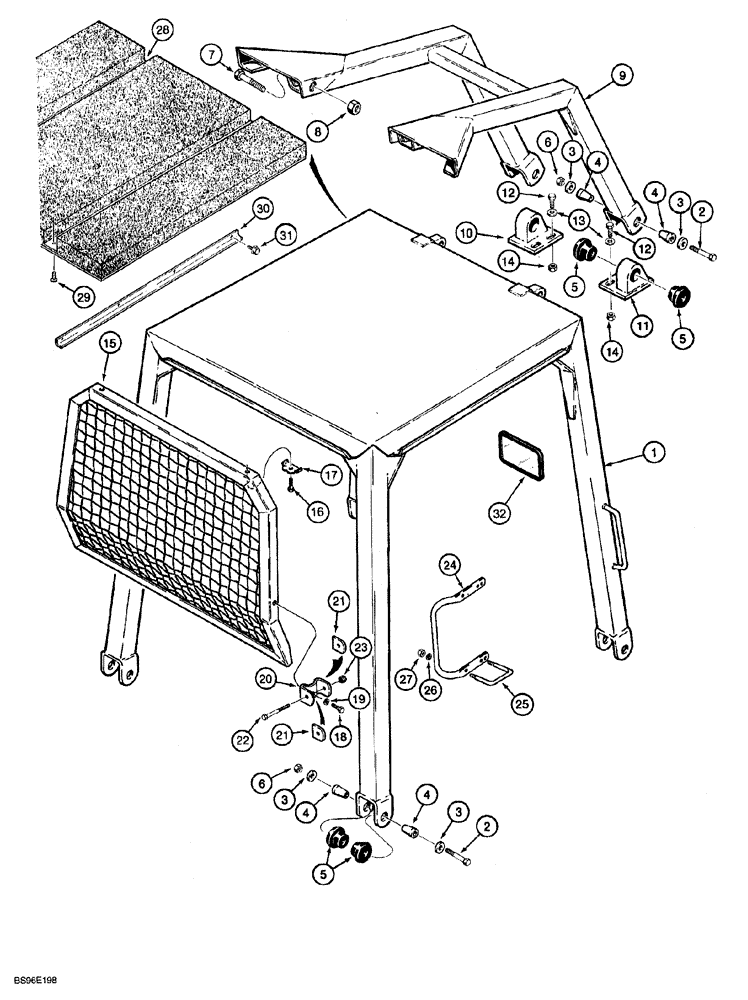

Запчасти Case 850G (9-46) - ROLL OVER PROTECTIVE STRUCTURE - CANOPY AND BRUSH GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R58394

ARCH

CANOPY brown, ROPS, order from Machinery Price List

1шт.

1

180588A1

ROPS

ASSEMBLY CANOPY gray, ROPS, order from Machinery Price List

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

6шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special

12шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

insert

12шт.

5

F44212

MOUNTING PARTS

INSULATOR rubber, mounting

12шт.

6

232-41112

NUT,3/4"-10, GC

6шт.

7

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch

2шт.

8

231-14416

LOCK NUT,1"-8, GB

hex, 1 inch NC

2шт.

9

R57170

PROTECTOR

GUARD brush, brown

1шт.

9

181901A1

GUARD ASSY.

GUARD brush, gray

1шт.

10

F93983

BRACKET

brush guard mounting, left-hand

1шт.

11

F93982

BRACKET

brush guard mounting, right-hand

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special, 3/4 inch

4шт.

14

425-1012

NUT,3/4"-10, G5

4шт.

15

R48510

BAFFLE

SCREEN rear, brown

1шт.

15

182020A1

SCREEN

rear, gray

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

17

R38226

LOCK WASHER

special tab locking, upper, used on models with brown trim

2шт.

17

182651A1

LOCK WASHER

special tab locking, upper, used on models with gray trim

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

R56543

CLAMP

mounting, screen , used on models with brown trim

2шт.

20

182034A1

SPECIAL CLAMP

mounting, screen, used on models with gray trim

2шт.

21

R40074

CUSHION ASSY.

rubber, screen mounting

4шт.

22

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

hex, 1/2 NC x 5-1/4 inch

2шт.

23

231-1448

NUT,1/2"-13, GB

hex, NC

2шт.

24

108453A1

HANDLE

grab, brown, rear ROPS canopy frame, LGP models

2шт.

24

187895A1

HANDLED SHAFT

grab, gray, rear ROPS canopy frame, LGP models

2шт.

25

108514A1

U-BOLT

3/8 inch NC

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

27

425-106

NUT,3/8"-16, Cl 5

8шт.

28

R48895

NOISE PROTECTION

HEADLINER brown, ROPS canopy, vinyl covered

1шт.

28

180576A1

FOAM

HEADLINER gray, ROPS canopy, vinyl covered

1шт.

29

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

black, plastic, 1/4 hole size x 7/8 inch head dia

6шт.

30

R58402

ANGLE BAR

BRACKET brown, headliner retaining

2шт.

30

180589A1

ANGLE

BRACKET gray, headliner retaining

2шт.

31

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

32

L74714

MIRROR

rearview, Includes mounting hardware

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
