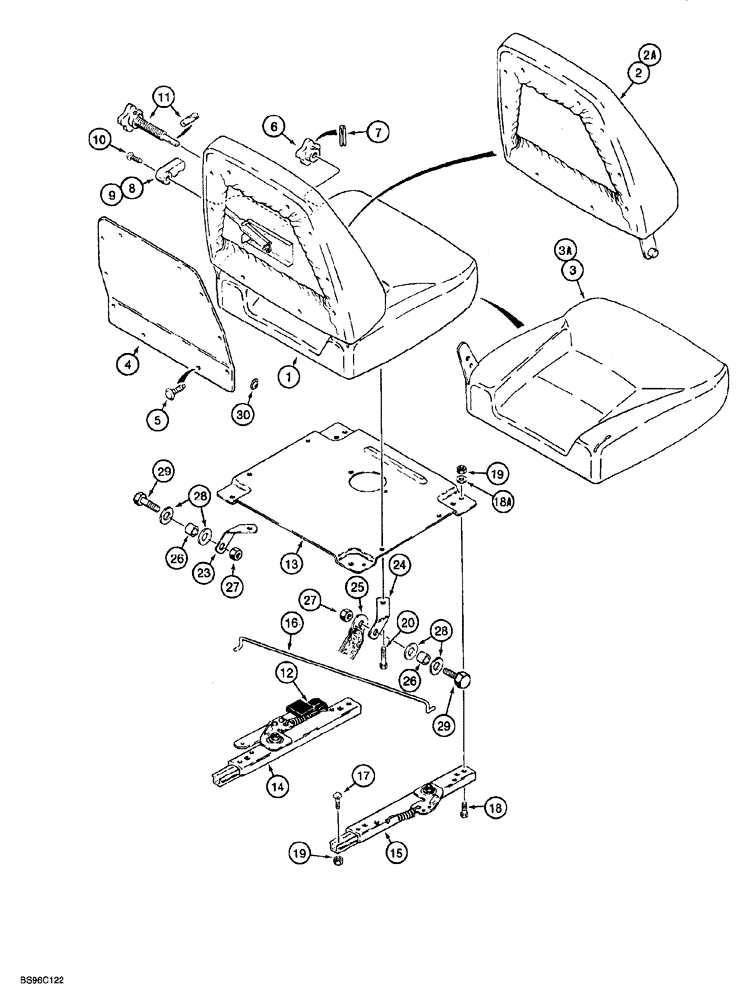

Запчасти Case 850G (9-42) - SUSPENSION SEAT ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

1340220C2

SEAT ASSY.

suspension, brown vinyl, also includes parts on figures 9-44 and 9-45A, Includes: Ref. 1 - 30

1шт.

175764A1

SEAT ASSY.

suspension, gray vinyl, also includes parts on figures 9-44 and 9-45A, Includes: Ref. 1 - 30

1шт.

1

1999727C3

SEAT ASSY.

KIT complete, brown, without arm rests, seat slides or tether, Includes Refs. 1-11

1шт.

1

185361A1

SEAT ASSY.

KIT complete, gray, without arm rests, seat slides or tether, includes Refs. 1-11

1шт.

2

138365A1

FRAME ASSY

KIT backrest cushion, brown, complete, without backrest cover, includes knob

1шт.

2

185362A1

BACKREST

KIT cushion, gray, complete with frame, without backrest cover, includes knob

1шт.

2a

1999729C1

BACKREST COVER

PAD cushion, with brown vinyl cover, includes hog rings

1шт.

2a

185364A1

PAD

backrest, with gray vinyl cover, includes hog rings

1шт.

3

138366A1

FRAME ASSY

KIT seat cushion, brown, complete, includes knob, Includes: Ref. 3A

1шт.

3

185363A1

CUSHION ASSY.

KIT seat, gray, complete with frame, includes knob, Includes: Ref. 3A

1шт.

3a

1999728C2

CUSHION

seat, with brown vinyl cover, no frame, includes hog rings

1шт.

3a

185365A2

PAD

seat, with gray vinyl cover, no frame, includes hog rings, Replaces: 185365A1

1шт.

3b

141566A1

LARGE PLATE

PLATE, LARGE reinforcement, left-hand, seat frame to backrest frame, if used, not shown

1шт.

1981820C2

PACKAGE, REPAIR

backrest cover and retainers, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

COVER backrest plate

1шт.

5

1999693C1

KIT

christmas tree clip, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

7

38-31016

PIN,5/32" x 1", Coiled

2шт.

8

NSS

NOT SOLD SEPARAT

KNOB back tilt cover

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE recliner

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW special

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB fore/aft

1шт.

13

182991A1

LARGE PLATE

PLATE, LARGE adapter

1шт.

1344248C1

SLIDE

KIT double locking, Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

SLIDE locking seat, with handle

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE locking

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE slide latch

1шт.

17

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18a

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

19

231-4115

NUT,5/16"-18, GB

8шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

1999806C1

KIT

tether, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET mounting, left-hand

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET mounting, right-hand

1шт.

25

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

26

NSS

NOT SOLD SEPARAT

SPACER tether

2шт.

27

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

2шт.

28

495-21063

WASHER,9/16"

flat, 5/8 x 1-15/32 x 7/64 inch

4шт.

29

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

2шт.

30

176091A1

PACKAGE,SERVICE

retaining, hog ring, package of 48 rings for cushions

2шт.
