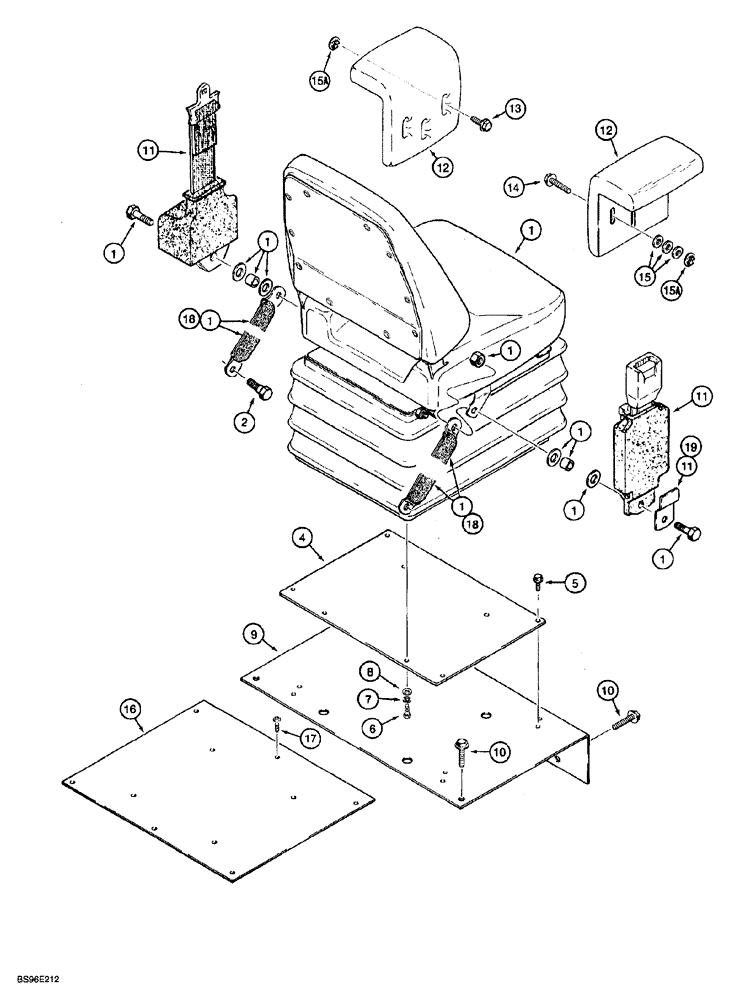

Запчасти Case 850G (9-38) - SUSPENSION SEAT MOUNTING, ARMRESTS, AND SEAT BELT (05) - UPPERSTRUCTURE CHASSIS

1

1340220C2

SEAT ASSY.

suspension, brown, parts list figures 9-42 - 9-45A

1шт.

1

175764A1

SEAT ASSY.

suspension, gray, parts list figures 9-42 - 9-45A

1шт.

2

F42236

STEP BOLT

shoulder, special

2шт.

4

R58675

LARGE PLATE

PLATE, LARGE seat mounting, models without cab

1шт.

5

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

R58423

SUPPORT

seat mounting plate, at seat and tank frame

1шт.

10

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

11

R58339

SAFETY BELT ,2.00" W

Retractable

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, Without reinforcing bracket at mounting, Must purchase seperatly, Used with D150393 belt reinforcing bracket, Item 19, If used

1шт.

12

R58336

ARMREST

cushion - Brown NLA

2шт.

12

194738A1

ARMREST

cushion, gray

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used with Ref. 14 bolt only, 3 used between armrest and each mounting location on hydraulic tank

9шт.

15a

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

16

1999356C1

LARGE PLATE

PLATE, LARGE seat mounting, models with cab

1шт.

17

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

6шт.

18

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

19

D150393

BRACKET

reinforcing, seat belt, if used

1шт.
