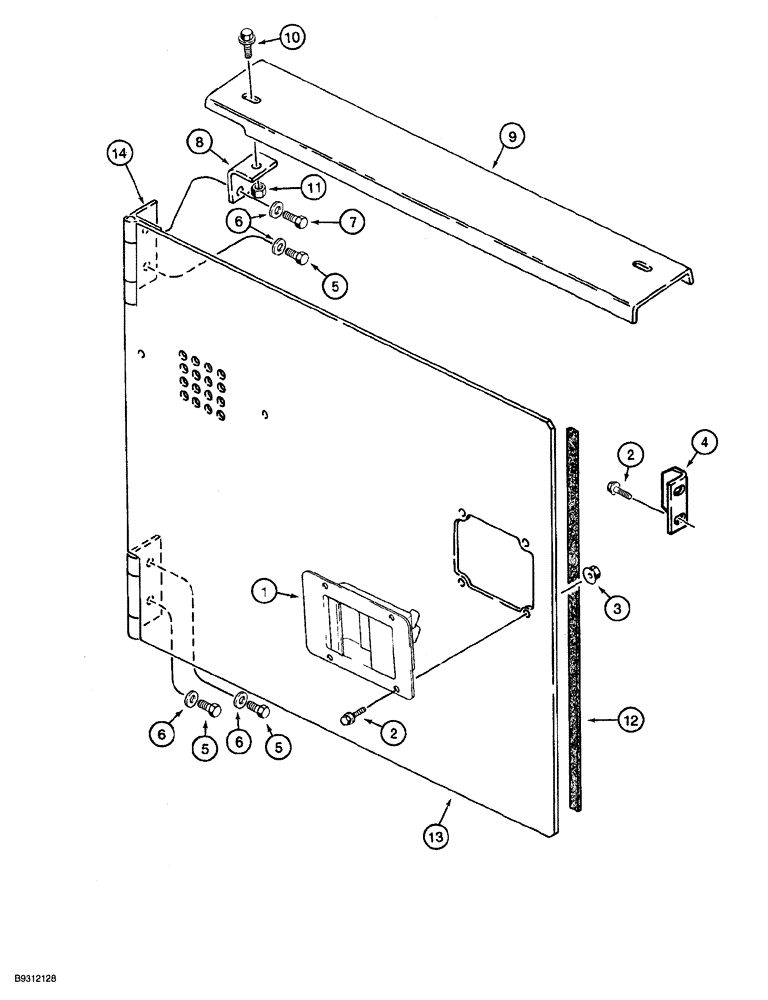

Запчасти Case 850G (9-22) - REAR ACCESS COVER (05) - UPPERSTRUCTURE CHASSIS

1

R56221

LATCH

LATCH rear access cover

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

PLATE, LARGE STRIKER latch, rear cover

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

5шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

R48725

SUPPORT

mounting

2шт.

9

R49363

COVER

top

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

hex, light, self locking, 3/8 inch NC

2шт.

12

R56995

PROTECTION STRIP

PAD bumper

1шт.

Part of Adhesive Spray Can, P/N 345-44

1шт.

13

R55078

COVER

rear, hinged, models without cab

1шт.

13

101194A1

COVER

rear, hinged, models with cab, Includes: Ref. 14

1шт.

14

R50984

HINGE

weld-on for R55078 or 101194A1

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.
