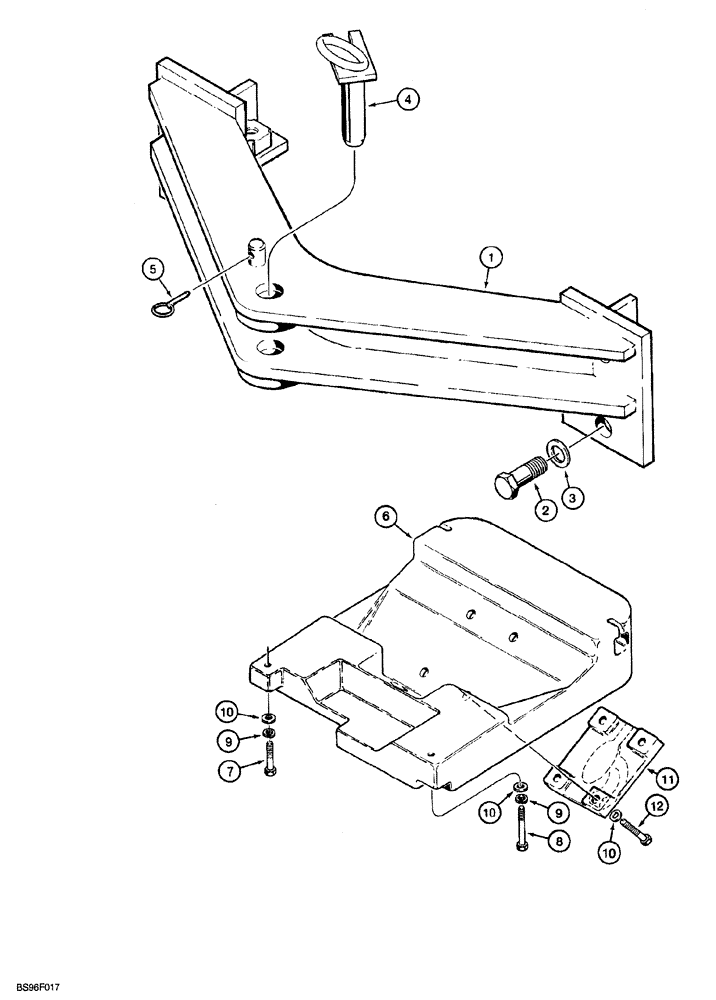

Запчасти Case 850G (9-10) - DRAWBAR AND FRONT COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

1

R43751

DRAWBAR

used on models with no rear equipment

1шт.

2

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

Drawbar

4шт.

3

D30196

WASHER

flat, special, 1 inch, drawbar

4шт.

4

R33340

PIN

drawbar

1шт.

5

A30338

PIN

lock, drawbar

1шт.

6

R50218

BALANCER

COUNTERWEIGHT, front, lower

1шт.

7

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, left-hand rear, 5/8 NC x 3-1/4 inch, counterweights

1шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Counterweights

1шт.

9

492-11062

BEARING WASHER,5/8"

Counterweights

2шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, counterweights

6шт.

11

71671

PLATE ASSY.

HOOK pull, front, if used, counterweights

1шт.

12

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Counterweights

4шт.
