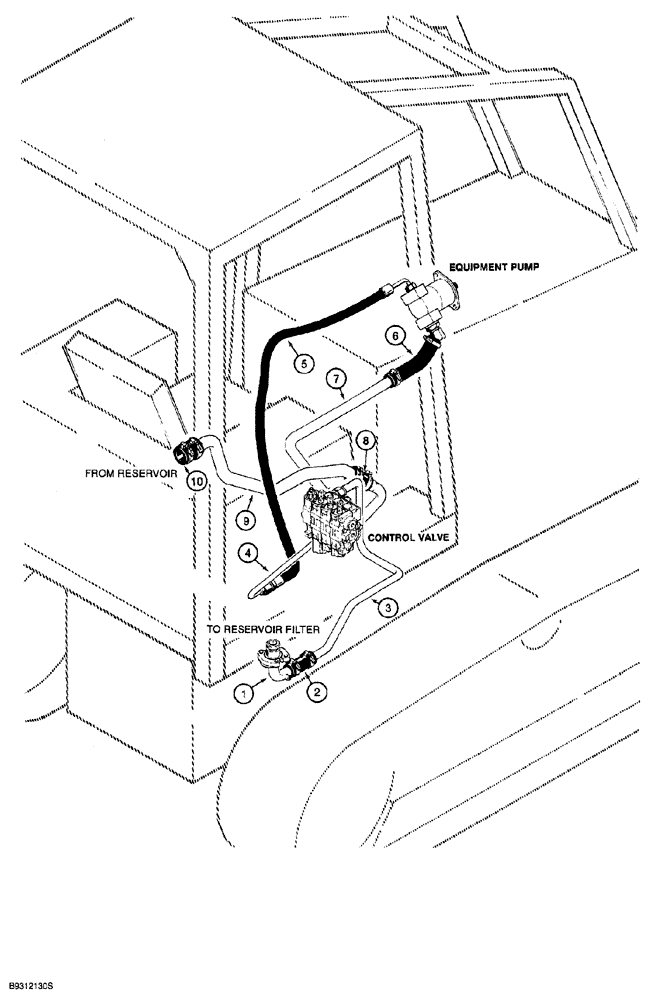

Запчасти Case 850G (1-12) - PICTORIAL INDEX - EQUIPMENT HYDRAULIC CIRCUIT, SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

1

Return Tube from Control Valve to Filter in Reservoir

8-9шт.

2

Return Hose to Filter from Control Valve

8-9шт.

3

Return Tube from Control Valve Upper Outlet Port

8-9шт.

4

Supply Tube to Control Valve Lower Outlet Port from Pump

8-9шт.

5

Supply Hose at, Serial Range: Pump-Tube

8-9шт.

6

Supply Hose at Pump

8-7шт.

7

Intermediate Supply, Serial Range: Tube-Pump

8-7шт.

8

Intermediate Supply Hose from, Serial Range: Reservoir-Pump

8-7шт.

9

Supply Tube to Pump at Reservoir

8-7шт.

10

Supply Hose to Pump at Reservoir

8-7шт.
