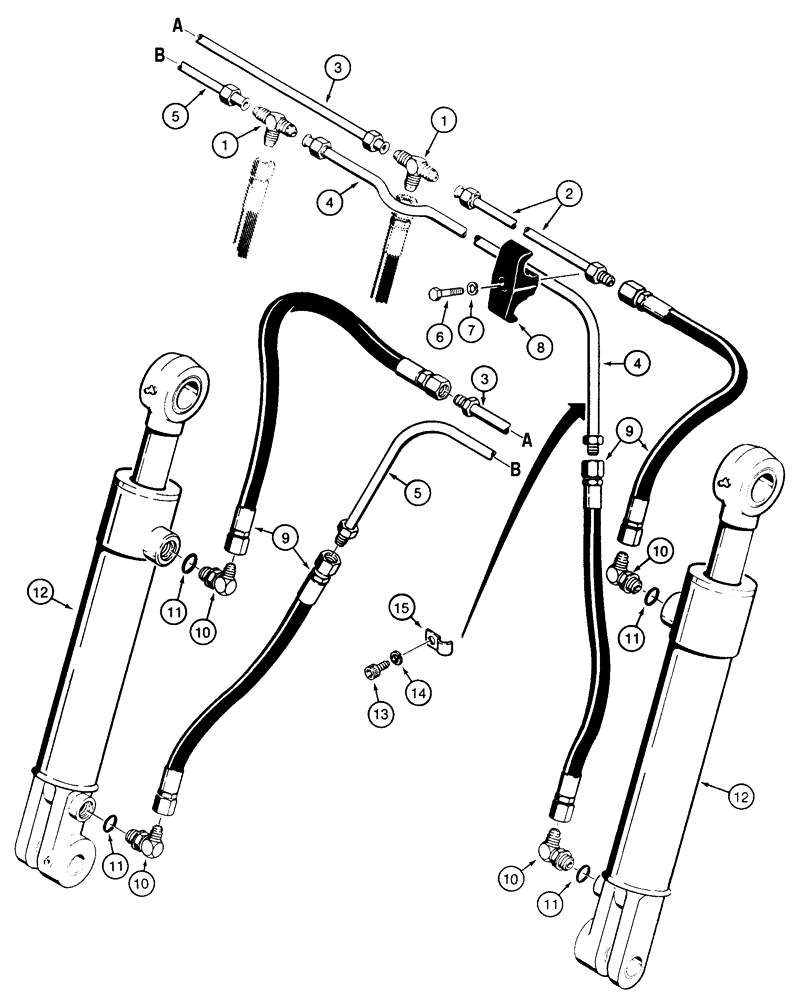

Запчасти Case 850E (8-020) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- 1-1/16-12 flare branch x 7/8-14 inch flare x flare

2шт.

2

R35431

TUBE,0.625" OD x 19.9" L

- right-hand upper

1шт.

3

R35429

TUBE,0.625" OD x 24.3" L

- left-hand upper

1шт.

4

R35435

TUBE,0.625" OD

- right-hand lower

1шт.

5

R35433

TUBE,0.625" OD x 13.02, 14.54" L

- left-hand lower

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

7

492-11038

LOCK WASHER,3/8"

3шт.

8

D120613

CLAMP,20mm ID

- tube, spacer type

3шт.

9

D64000

HOSE

- 20 inch (508 mm) long

4шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

4шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

G101211

CYLINDER BLOCK

CYLINDER ASSEMBLY - clam bucket, parts list figure 8-50

2шт.

13

61-33810

HEX SOC SCREW,3/8"-16 x 5/8"

BOLT - hex socket, 3/8 NC x 5/8 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R41366

CLIP

- tube retaining

2шт.
