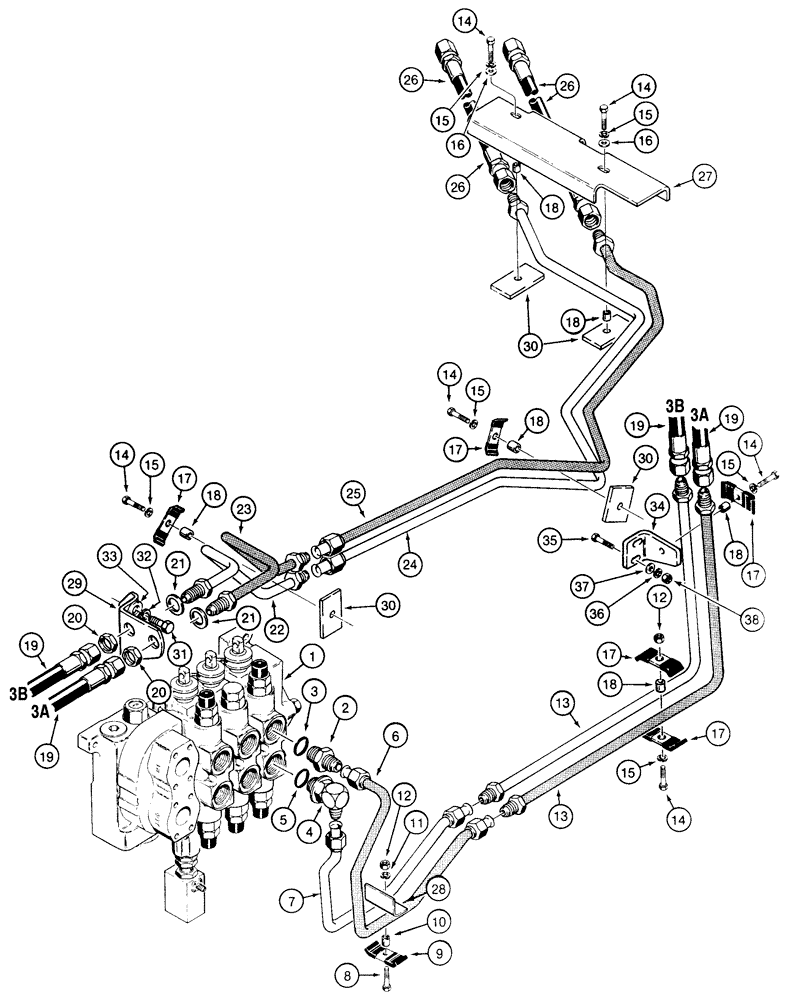

Запчасти Case 850E (8-018) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see pages 8-79 - 8-87

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

R35575

TUBE,0.75" OD

- at control valve, upper, A port

1шт.

7

R35577

TUBE,0.75" OD

- at control valve, lower, B port

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

9

D40236

CLAMP

- tube support

1шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

R35579

TUBE,0.75" OD x 18.19, 15.19" L

- at loader frame upright

2шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

17

D40236

CLAMP

- tube support

5шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

6шт.

19

R35582

HOSE

- 44 inch (1118 mm) long

2шт.

20

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

21

B18145

WASHER

- flat

2шт.

22

R35588

PIPE,0.75" OD

TUBE - lower and inner, B port

1шт.

23

R35590

TUBE,0.75" OD

- upper and outer, A port

1шт.

24

R35584

TUBE,0.75" OD

- lower, B port

1шт.

25

R35586

TUBE,0.75" OD x 38.79, 8.09" L

- upper, A port

1шт.

26

R35428

HOSE

- 50 inch (1270 mm) long

2шт.

27

R35573

GUARD

- hydraulic lines

1шт.

28

R27733

BRACKET

- clamp mounting, weld to seat and tank frame

1шт.

29

R58771

BRACKET

- tube support, weld to loader lift frame

1шт.

30

D51930

BLOCK

- tapped, clamp retaining, weld to loader lift frame

4шт.

31

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

- hex, 1/2 NC x 1-1/8 inch

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

34

R58770

BRACKET

- tube, at loader frame upright

1шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.
