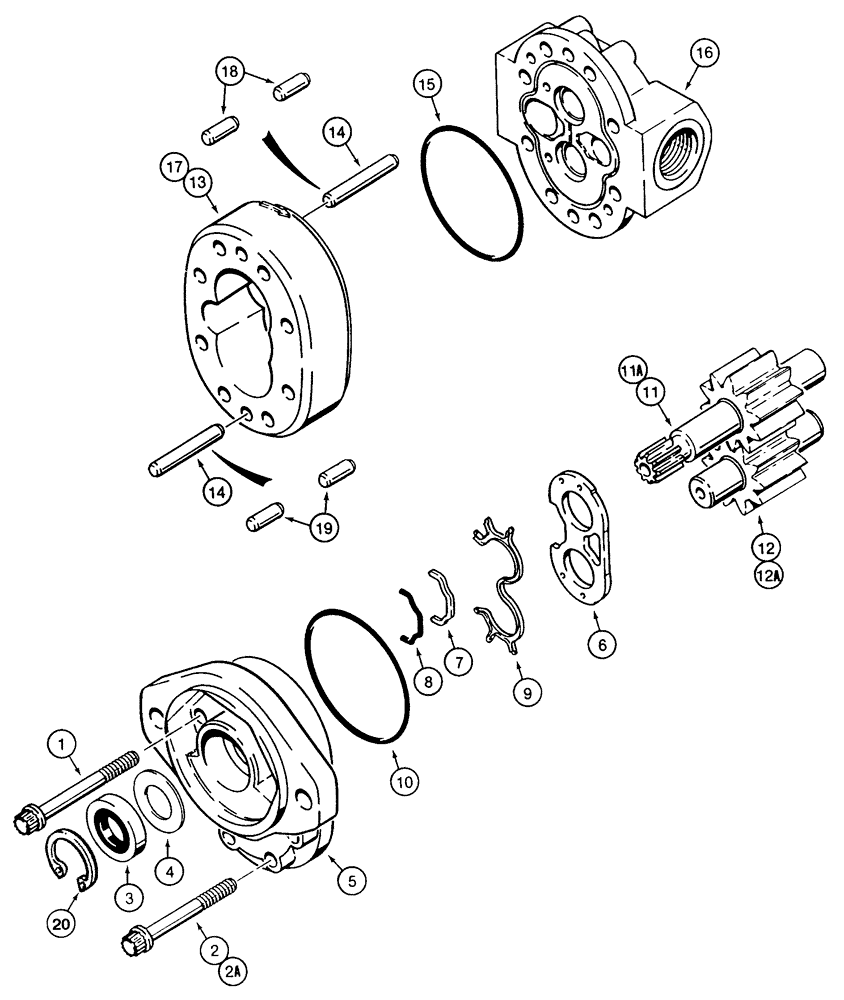

Запчасти Case 850E (8-012) - EQUIPMENT PUMP ASSEMBLY (08) - HYDRAULICS

186352A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, dozer models

1шт.

396801A2R

REMAN-HYD PUMP

850E, 855E; Reman for New P/N 186352A1

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

186353A1

PUMP

ASSEMBLY - equipment, loader models

1шт.

1

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - 12 point, 3/8 NC x 3-1/2 inch grade 8, 186352A1 pump, dozer models

4шт.

2a

27589R1

12 PT SCREW

BOLT - 12 point head, 3/8 NC x 4 inch, 186353A1 pump, loader models

4шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

4

H104117

WASHER

- seal

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

5

S301060

LARGE PLATE

COVER - shaft end

1шт.

6

1971509C1

PLATE

- wear

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

7

1971506C1

SEAL

- bearing

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

8

1971507C1

O-RING

- molded, bearing seal

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

9

S301059

GASKET

- wear plate

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

10

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

- 5 ID x 3/16 inch wide, shaft end cover to gear housing

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

11

S301057

GEAR

AND SHAFT - drive, 186352A1 pump, dozer models

1шт.

11a

101808A1

GEAR

AND SHAFT - drive, 186353A1 pump, loader models

1шт.

12

S301058

GEAR-SET

GEAR AND SHAFT - driven, 186352A1 pump, dozer models

1шт.

12a

50-2829T1

GEAR

AND SHAFT - driven, 186353A1 pump, loader models

1шт.

S301056

GEAR

HOUSING ASSEMBLY - gear, 186352A1 pump, dozer models

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - dowel, cover locating

2шт.

15

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Port end cover to gear housing -159, 90 Duro, 4.977" ID x .103" Thk

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

16

S301055

COVER

- port end

1шт.

50-2827T91

BODY

HOUSING ASSEMBLY - gear, 186353A1 pump, loader models

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - dowel, cover locating

2шт.

19

NSS

NOT SOLD SEPARAT

PIN - dowel, cover locating

2шт.

20

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, , Shaft seal 1.375", Int, #137

1шт.

Part of Pump Repair Kit P/N 191088A1

1шт.

191088A1

SEAL KIT

KIT - pump repair, Includes: Ref. 3, 4, 6-10, 15 and 20

1шт.
