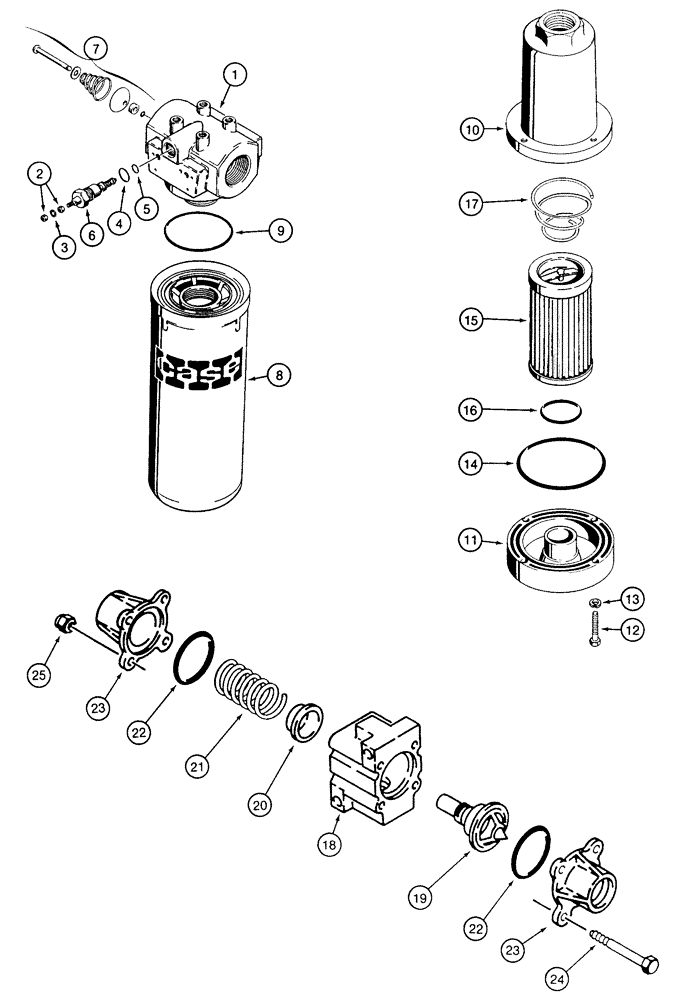

Запчасти Case 850E (6-32) - HYDRAULIC OIL FILTERS AND BYPASS VALVE, TRANSMISSION OIL FILTER (06) - POWER TRAIN

R48993

FILTER

ASSEMBLY - transmission oil

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N7929

INDICATOR

ASSEMBLY - restriction, electric

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner, small

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass, filter

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, replacement

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

N9026

O-RING

- element

1шт.

D35144

FILTER

FILTER ASSEMBLY - transmission oil, suction line

1шт.

10

D37033

HOUSING

- filter, transmission suction line

1шт.

11

D37034

HEAD

- filter, transmission suction line

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Transmission suction line filter Hex, 1/4"-20 x 1 1/2", G5

4шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Transmission suction line filter 1/4"

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

- housing, transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT - filter, transmission suction line

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Element, transmission suction line filter -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

17

D37036

SPRING

- element, transmission suction line filter

1шт.

R51141

THERMOSTAT

VALVE ASSEMBLY - bypass, thermostat, cooling circuit

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - bypass valve, thermal assembly

1шт.

19

N9802

THERMOSTAT

- bypass element, thermal valve assembly

1шт.

20

A48899

SEAL

POPPET - valve seal, thermal bypass assembly

1шт.

21

N9804

SPRING

- poppet, thermal bypass valve assembly

1шт.

22

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

-034, 70 Duro, 2.114" ID x .070" Thk, End caps, Thermal bypass valve assembly

2шт.

23

NSS

NOT SOLD SEPARAT

CAP - end, bypass valve ports, order valve assembly R51141, thermal

2шт.

24

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

Thermal bypass valve assembly Hex, 1/4"-20 x 3 1/4", G5

4шт.

25

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC, thermal bypass valve assembly

4шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
