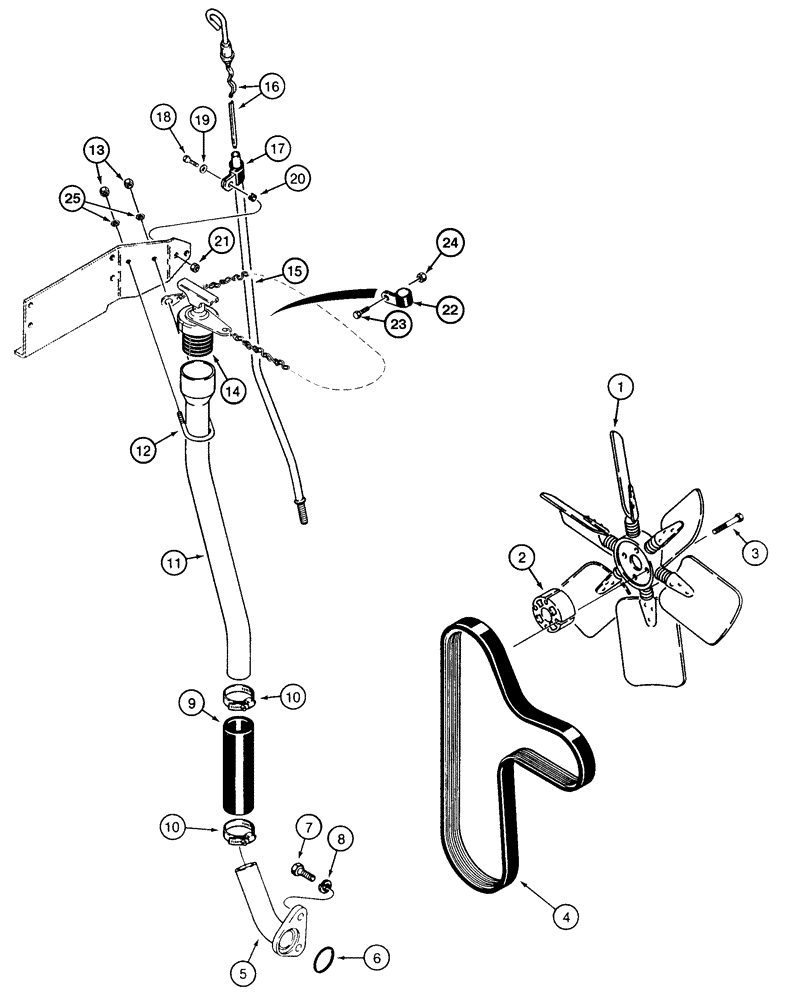

Запчасти Case 850E (2-42) - RADIATOR FAN AND BELT, ENGINE FILLER TUBE AND DIPSTICK (02) - ENGINE

1

A173564

FAN

- reversible

1шт.

2

A184544

SPACER

- 1-1/4 inch wide

1шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning, see Figure 9-98

1шт.

3

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

BOLT - hex, 10 - 1.5 x 55 mm class 10.9

4шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning, see Figure 9-98

1шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

5

R53750

TUBE,24 mm L

- engine oil fill

1шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

9

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Cut from 183616C1 Bulk Hose Shown Below 38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning, see Figure 9-98

1шт.

10

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

2шт.

11

R52622

TUBE,38.1 mm OD x 670, 100 mm L

- engine oil fill

1шт.

12

L73167

U-BOLT

- upper engine oil fill tube to coolant recovery bottle bracket

1шт.

13

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

14

L115504

CAP

- filler tube, includes chain

1шт.

15

R57347

TUBE,9.52 mm OD x 182, 835 mm L

- dipstick

1шт.

16

R47937

DIPSTICK

- engine oil

1шт.

17

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

1шт.

18

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

R39516

GROMMET

- rubber

1шт.

21

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

22

49845

CLAMP

- P-type

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

24

213-1446

NUT - hex, self locking, 3/8 x inch NC

1шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

- bulk, 1-1/2 (38) ID x 1-11/16 (43) OD x 46 inch (1168 mm) long, used for Ref. 9

1шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning, see Figure 9-98

1шт.
