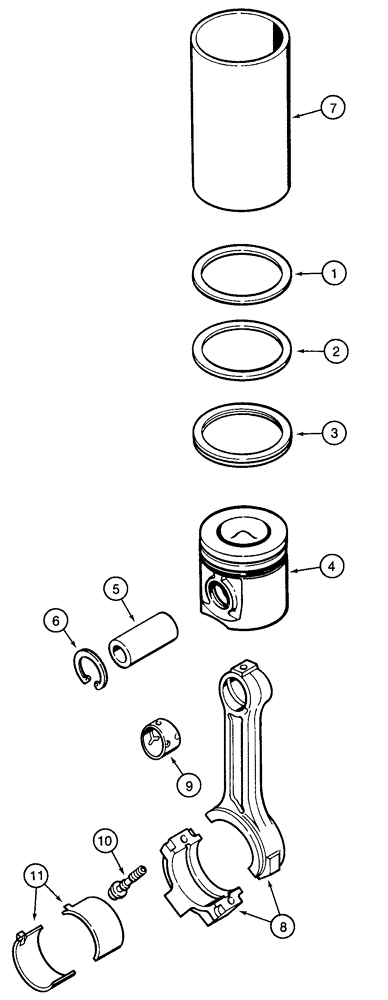

Запчасти Case 850E (2-34) - PISTONS, 6-590 ENGINE, NATURAL ASPIRATED (02) - ENGINE

A77410

PISTON

KIT - piston, standard

6шт.

A77401

PISTON RING SET

KIT - ring, standard

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 6223)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap, pin

2шт.

A77411

PISTON

KIT - piston, 0.5 mm oversize

6шт.

A77463

PISTON RING SET

KIT - ring, 0.5 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 6209)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap, pin

2шт.

A77412

PISTON

KIT - piston, 1.0 mm oversize

6шт.

A77464

PISTON RING SET

KIT - ring, 1.0 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 6208)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap, pin

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (when liner is installed, use A77410 standard piston kit)

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, replaces J901569 rod assembly

6шт.

JR925232

ROD

Assembly - connecting, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, replaces JR901569 rod assembly

6шт.

JC925232

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly, replaces JC925232

6шт.

84145405R

REMAN-CONNECTING ROD

850E, 855E, Reman For New PN J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

6шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, connecting rod

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, connecting rod

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, connecting rod

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, connecting rod

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, connecting rod

6шт.
