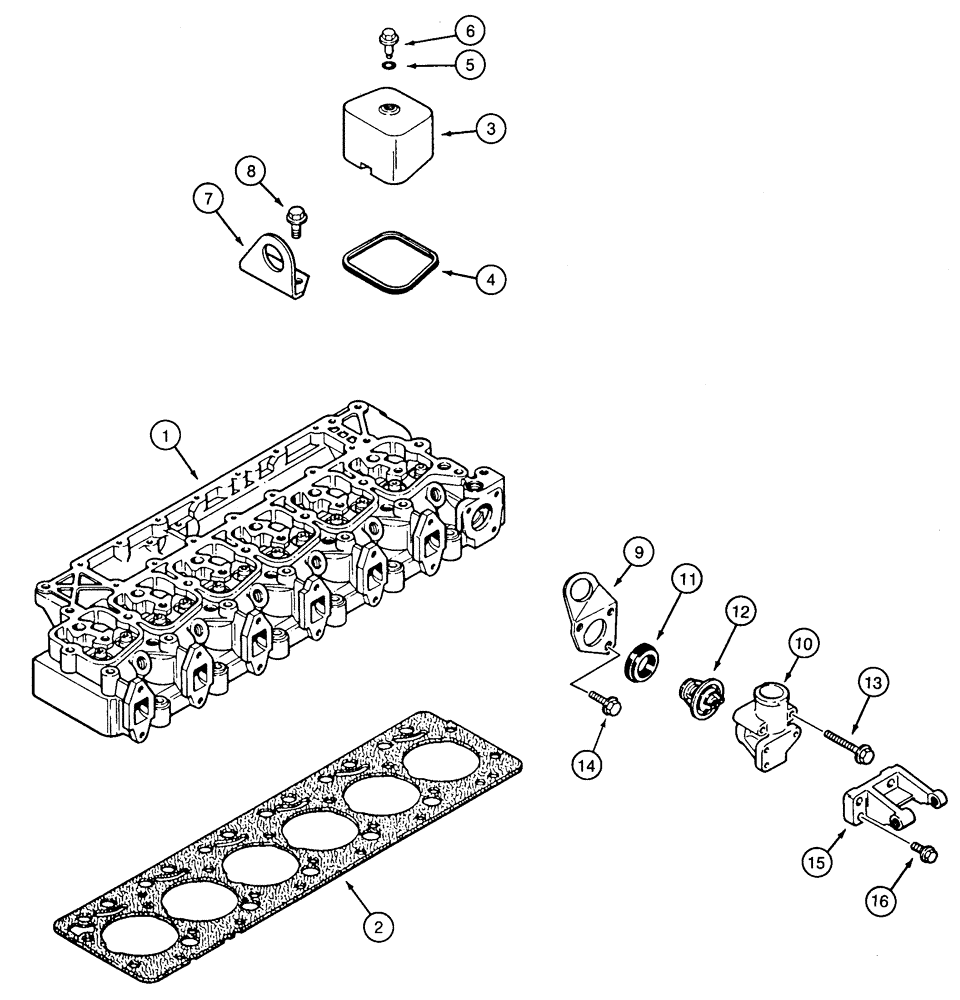

Запчасти Case 850E (2-16) - CYLINDER HEAD COVERS AND GASKET, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-18 for correct cylinder head and component parts

1шт.

2

J282805

GASKET

- head, standard, replaces J921394 gasket

1шт.

2

J921396

CYLINDER HEAD GASKET

- head, 2 notches, 0.25 mm overthick

1шт.

2

J921398

GASKET

- head, 3 notches, 0.50 mm overthick

1шт.

3

J902604

COVER

- rocker arm

6шт.

4

J902666

GASKET

SEAL - rocker arm cover

6шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

6

J907049

BOLT,Hex

- hex flange, special

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat & housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, housing

1шт.

10

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, housing

1шт.

11

J923331

GASKET

- thermostat housing, replaces J920020 gasket

1шт.

12

J914409

HOUSING

- thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat housing to cylinder head

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Front lifting bracket to cylinder head, thermostat & housing

1шт.

15

J923387

SUPPORT

- alternator mounting, replaces J910713 support, thermostat & housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Alternator mounting support to thermostat housing

3шт.
