(1-22) - PICTORIAL INDEX, BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE

Запчасти Case 850E (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE (00) - PICTORIAL INDEX

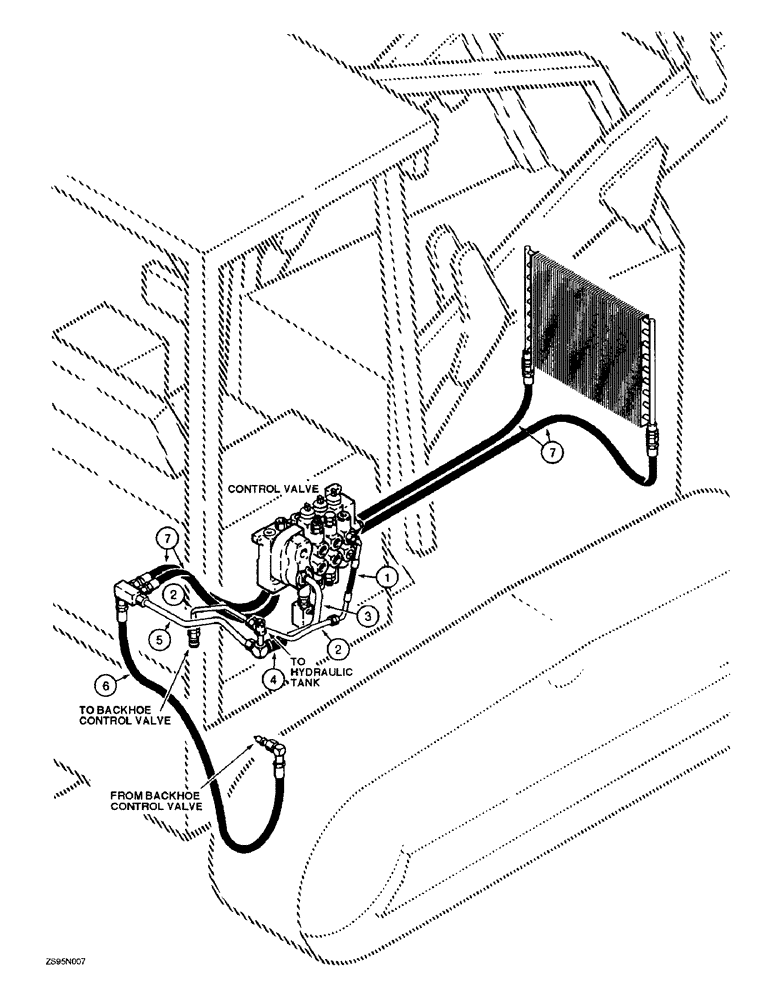

Схема запчастей Case 850E - (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE (00) - PICTORIAL INDEX
1
4
2
6
7
5
2
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hoses at Control Valve Backhoe Section, figure 8-38

1шт.

2

Supply Tubes to Female Quick Disconnect Coupling, figure 8-38

1шт.

3

Return Tube at Control Valve, figure 8-40

1шт.

4

Return Hose, figure 8-40

1шт.

5

Return Tube at Manifold, figure 8-38

1шт.

6

Return Hose from Backhoe, figure 8-38

1шт.

7

Hoses at Oil Cooler, figure 8-42

1шт.

Выбрано товаров: 7
