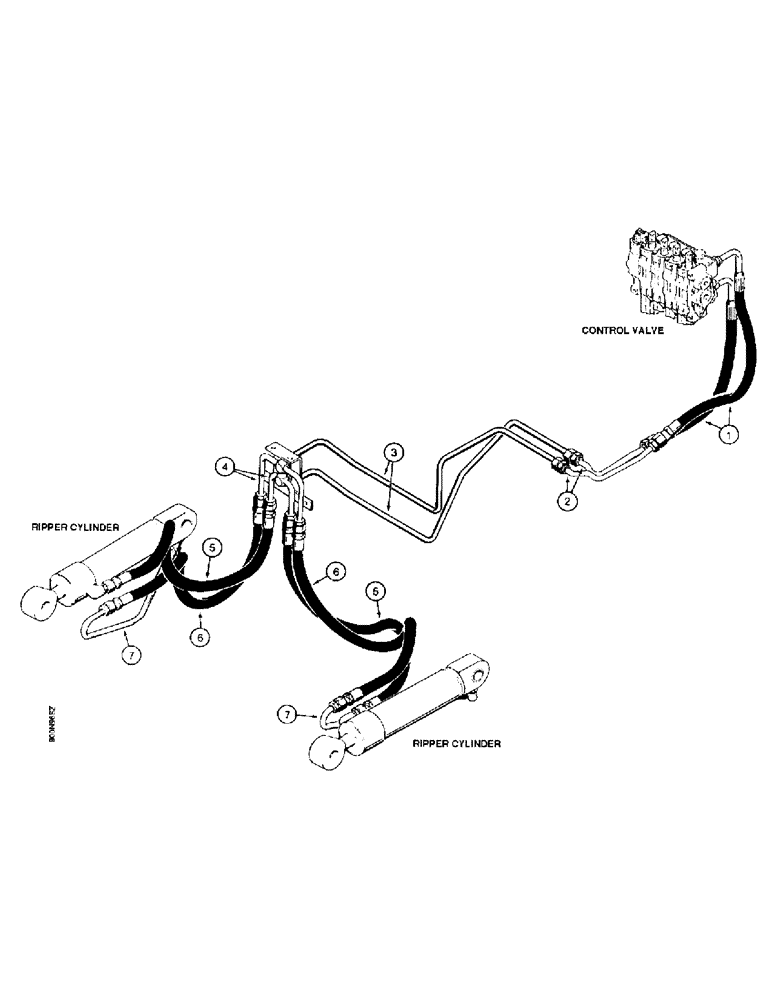

Запчасти Case 850E (1-20) - PICTORIAL INDEX, RIPPER HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

1

Hoses at Control Valve, figure 8-34

1шт.

2

Tubes at Control Valve Hoses, figure 8-34

1шт.

3

Intermediate Tubes from Control Valve, figure 8-34

1шт.

4

Tubes at Cylinder Hoses, figure 8-36

1шт.

5

Hoses to Ripper Cylinder Rod End, figure 8-36

1шт.

6

Hoses to Tubes at Ripper Cylinder Closed End, figure 8-36

1шт.

7

Tubes to Closed End of Ripper Cylinders, figure 8-36

1шт.
