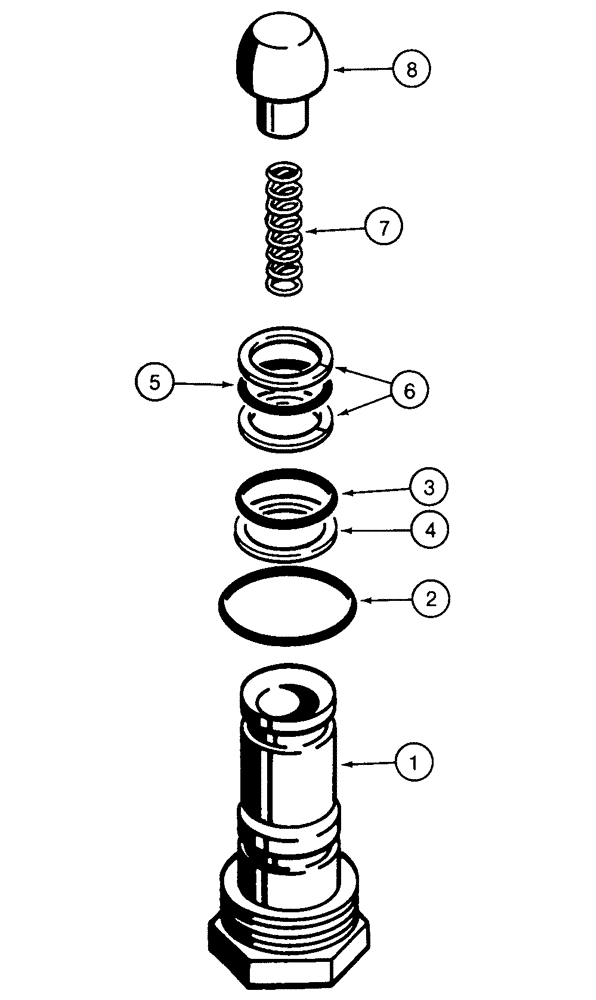

Запчасти Case 850E (8-112) - LOAD CHECK VALVE (08) - HYDRAULICS

D87307

VALVE

ASSEMBLY - load check

6шт.

1

NSS

NOT SOLD SEPARAT

BODY - load check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

6

D88725

BACK-UP RING

RING - backup, inner O-ring

2шт.

7

H268730

SPRING

- poppet

1шт.

8

D28576

VALVE POPPET

POPPET - load check valve

1шт.
