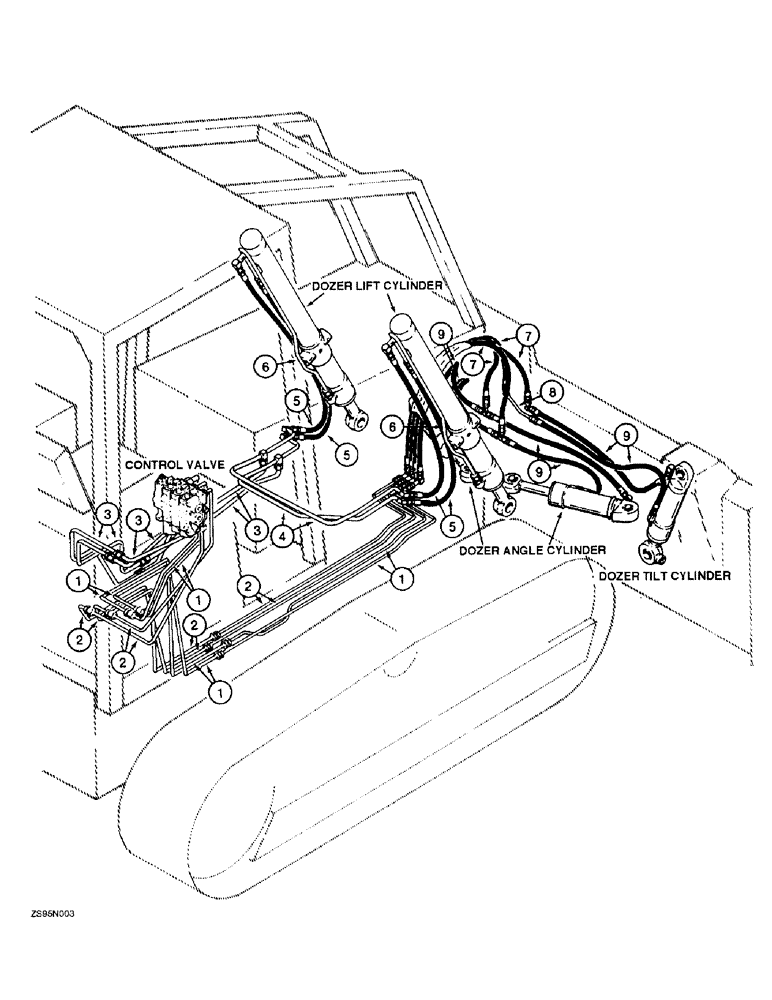

Запчасти Case 850E (1-14) - PICTORIAL INDEX, DOZER LIFT, TILT AND ANGLE HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

1

Tilt Tubes from Control Valve to Grille, figure 8-26, 8-28

1шт.

2

Angle Tube from Control Valve to Grille, figure 8-26, 8-28

1шт.

3

Lift Tubes from Control Valve, figure 8-22

1шт.

4

Crossover Tubes to Lift Cylinders, figure 8-24

1шт.

5

Hoses to Lift Cylinders, figure 8-24

1шт.

6

Tube to Rod End of Lift Cylinders, figure 8-24

1шт.

7

Tilt and Angle Hoses from Grille to Blade, figure 8-30, 8-32

1шт.

8

Tube to Rod End of Tilt Cylinder, figure 8-30

1шт.

9

Hoses to Tilt and Angle Cylinders, figure 8-30, 8-32

1шт.
