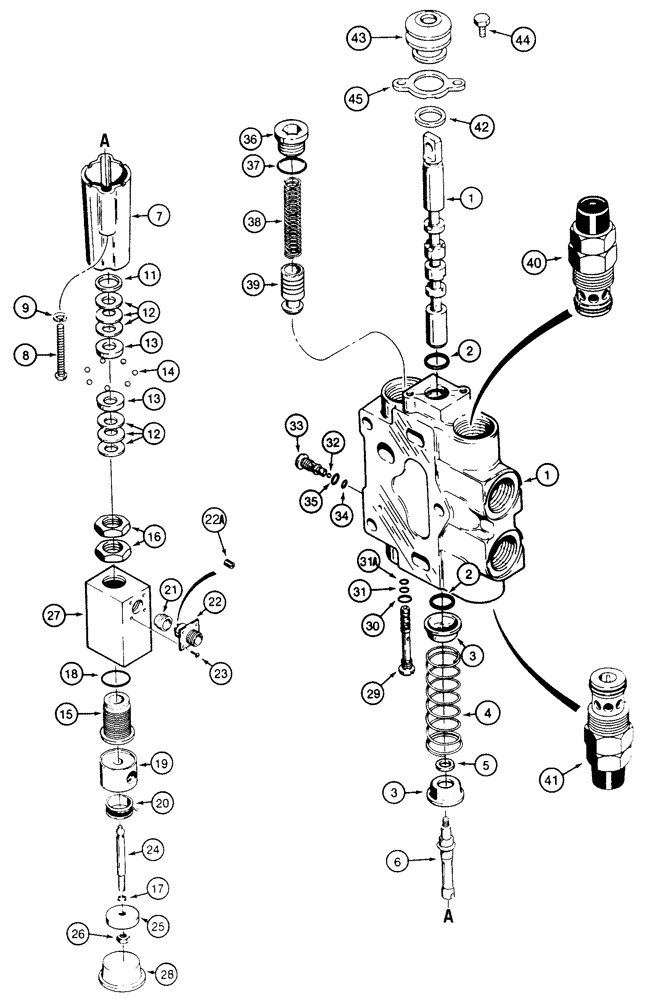

Запчасти Case 850E (8-092) - LOADER BUCKET SECTION (08) - HYDRAULICS

S300429

LOCK VALVE

SECTION ASSEMBLY - loader bucket, identification No. 413

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - includes spool, section

1шт.

2

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool -118, 70 Duro, .862" ID x .103" Thk

2шт.

3

R30191

WASHER

SEAT - centering spring

2шт.

4

R30192

SPRING

- centering, spool

1шт.

5

R30193

BUSHING

WASHER - spacer, detent shaft

1шт.

6

N7713

SHAFT

- detent

1шт.

7

D87092

HOUSING

- centering spring

1шт.

8

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

BOLT - hex socket, 1/4 NC x 2-1/4inch

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

D78438

WASHER

- special

1шт.

12

D78437

WASHER

- Belleville, detent

6шт.

13

D78439

RETAINER

- ball

2шт.

14

211-1008

BALL,1/4" Dia

- 1/4 inch, grade 24, chrome alloy steel

7шт.

15

D87091

CONNECTOR, ELEC

PLUG - detent, magnetic

1шт.

16

D87093

JAM NUT

- hex, jam, special

2шт.

17

D87094

BACK-UP RING

- magnetic detent stud, if used

1шт.

18

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Solenoid housing -022, 90 Duro, .989" ID x .070" Thk

1шт.

19

N14189

HOUSING

COIL ASSEMBLY - with housing

1шт.

20

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

21

D78433

PLUG

- socket

1шт.

22

R33408

CONNECTOR, ELEC

CONNECTOR - magnetic detent

1шт.

22a

NSS

NOT SOLD SEPARAT

INSULATOR - rubber sleeve, detent terminals

2шт.

23

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

4шт.

24

N7714

SHAFT

- magnetic detent

1шт.

25

N14190

PLATE

- detent stud

1шт.

26

N14191

LOCK NUT

- hex, special locking

1шт.

27

D87095

HOUSING

- magnetic detent

1шт.

28

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

S300429

LOCK VALVE

SECTION ASSEMBLY - loader bucket, identification No. 413, continued from figure 8-92

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

31

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

31a

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

32

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary

1шт.

33

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal

1шт.

34

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

35

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

36

9841223

PLUG,1-1/16" - 12 ORB

Load check Hex Soc, 1 1/16"-12 ORB

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

R30189

SPRING

- load check

1шт.

39

D87082

VALVE POPPET

POPPET - load check

1шт.

40

S300433

VALVE

ASSEMBLY - circuit relief, and anticavitation, A port, parts list figure 8-100

1шт.

41

S300440

VALVE

ASSEMBLY - circuit relief, and anticavitation, B port, parts list figure 8-100

1шт.

A48938

KIT

- filter, body and spool

1шт.

42

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

43

A47188

COVER

- dust

1шт.

44

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- retainer

2шт.

45

A47196

RETAINER

- filter

1шт.
