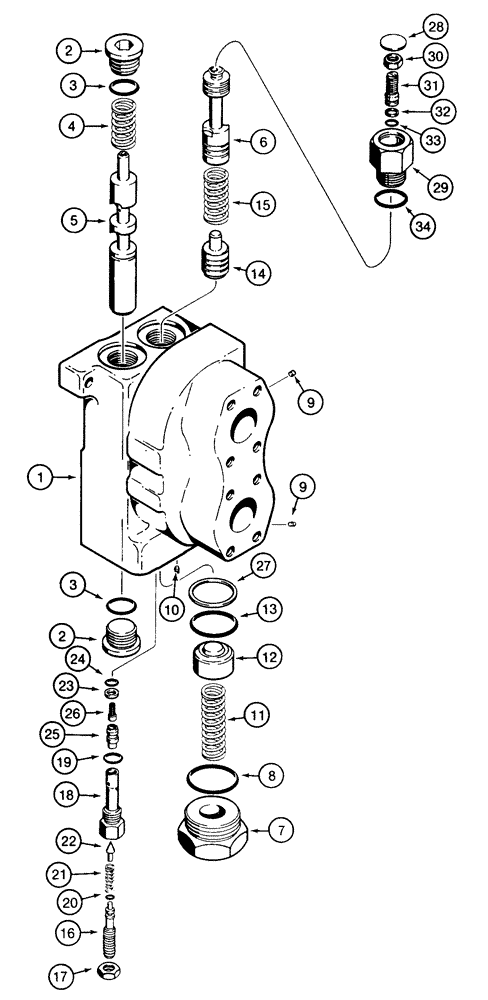

Запчасти Case 850E (8-088) - INLET AND OUTLET SECTION (08) - HYDRAULICS

D87071

VALVE

SECTION - inlet and outlet, identification No. 106

1шт.

The repair main relief valve is not preset at the correct pressure setting for any application on this tractor. See the service manual for the correct setting and procedure.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

D78464

SPRING

- regeneration spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - flow contol

1шт.

7

D78462

PLUG

- hex head, special

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

9

D78456

PLUG

RESTRICTOR - flow

2шт.

10

D78455

PLUG

- hex socket, pressure

1шт.

11

R30171

SPRING

- piston

1шт.

12

D78461

PISTON ASSY.

PISTON - flow control

1шт.

13

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - spring, flow control spool

1шт.

15

D78458

SPRING

- flow control spool

1шт.

N7805

VALVE PRESSURE RELIE

RELIEF ASSEMBLY - inlet/outlet section

1шт.

The repair main relief valve is not preset at the correct pressure setting for any application on this tractor. See the service manual for the correct setting and procedure.

1шт.

16

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

- adjusting, main relief assembly

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - main relief assembly

1шт.

20

238-5007

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

-007, 70 Duro, .145" ID x .070" Thk, Adjusting screw to relief valve body

1шт.

21

D78468

SPRING

- plunger

1шт.

22

D78469

PLUNGER

- main relief assembly

1шт.

23

L35305

RING

- backup, O-ring

1шт.

24

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Seat

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

26

NSS

NOT SOLD SEPARAT

FILTER - main relief assembly, wire-mesh

1шт.

27

D87079

RING

- backup, piston O-ring

1шт.

28

D87075

COVER

PLUG - dust, flow control spool plug

1шт.

D87077

PLUG

ASSEMBLY - flow control spool

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

30

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC, jam

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

32

D87094

BACK-UP RING

- backup, screw O-ring

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
