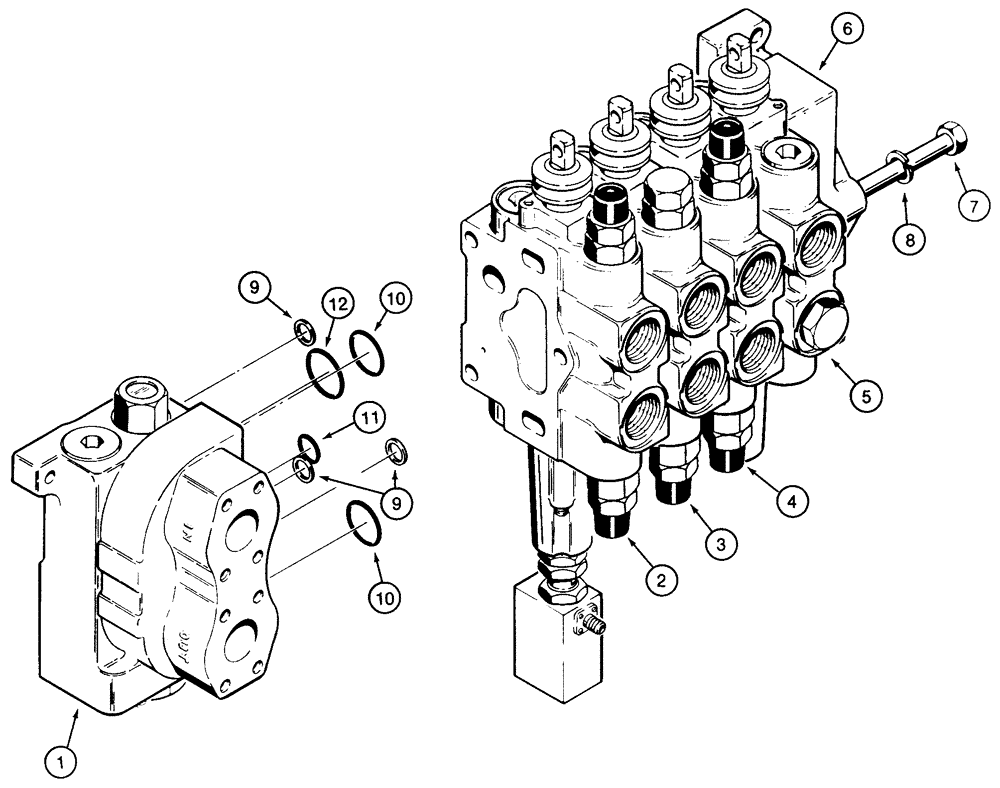

Запчасти Case 850E (8-086) - FOUR SPOOL CONTROL VALVE, LOADER MODELS WITH BACKHOE AND CLAM BUCKET (08) - HYDRAULICS

R56571

VALVE

CONTROL VALVE ASSEMBLY - four spool

1шт.

1

D87071

VALVE

SECTIONASSEMBLY - inlet and outlet, identification No. 106, part list figure 8-88

1шт.

2

S300429

LOCK VALVE

SECTION ASSEMBLY - loader bucket, identification No. 413, parts list figure 8-92

1шт.

3

S300430

LOCK VALVE

SECTION ASSEMBLY - loader lift, identification No. 319, parts listfigure 8-90

1шт.

4

S300435

VALVE

SECTION ASSEMBLY - clam bucket, identification No. 260, parts list figure 8-98

1шт.

5

S300678

VALVE

SECTION ASSEMBLY - backhoe, identification No. 261, parts list figure 8-96

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- tie, special

3шт.

8

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1 inch (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 inch (37 mm) OD

1шт.
