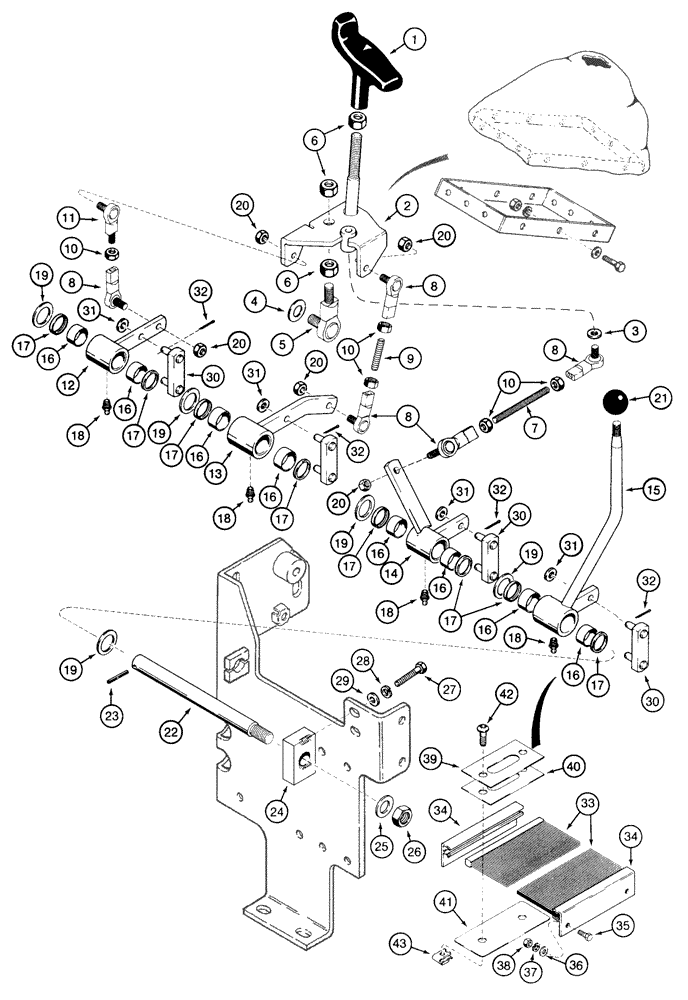

Запчасти Case 850E (8-076) - EQUIPMENT CONTROL LEVERS AND LINKAGE, TWO CONTROL LEVERS - FOUR SPOOL VALVE DOZER MODELS (08) - HYDRAULICS

R58221

VALVE

ASSEMBLY - equipment control, four spool, parts list figure 8-104, for mounting see figure 8-72

1шт.

1

R58490

HANDLE

- equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER - equipment control, lift, tilt and angle

1шт.

See Figure 8-74, items 38-43, for equipment control lever boot.

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

5

A55558

BALL JOINT

JOINT - ball, rod end

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

- threaded, 5/16 NF x 3-3/4 inch

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

5шт.

9

R56432

ROD,THREADED

ROD - threaded, 5/16 NF x 1-1/2 inch

1шт.

10

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

5шт.

11

R47939

ROD

JOINT - ball, male, 5/16 inch NF

1шт.

12

R58255

ROCKER

LEVER ASSEMBLY - lift, spool to shaft, includes items 16-18

1шт.

13

R58252

ROCKER

LEVER ASSEMBLY - tilt, spool to shaft, includes items 16-18

1шт.

14

R58246

ROCKER

LEVER ASSEMBLY - angle, spool to shaft, includes items 16-18

1шт.

15

R58249

LEVER

ASSEMBLY - auxiliary control, includes items 16-18

1шт.

16

L31166

NEEDLE BEARING

- roller

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

19

R58209

SPACER

- nylon

5шт.

20

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

5шт.

21

70213

KNOB

- auxiliary control lever

1шт.

22

R58256

SHAFT

- control linkage

1шт.

23

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

1шт.

24

R58257

BLOCK

- shaft mounting

1шт.

25

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

30

139345A1

POWER ARM

LINK - control valve, Serial Range: spools-levers

4шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

32

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

33

1999590C1

SEAL

BRUSH - seal, auxiliary control lever, cab models

2шт.

See Figure 8-74, items 38-43, for equipment control lever boot.

1шт.

34

1999591C1

RETAINER

- brush seal, cab models

2шт.

35

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

4шт.

36

495-31022

WASHER,#10

4шт.

37

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

38

225-14110

NUT,#10-24

4шт.

1999837C1

COVER ASSY

COVER ASSEMBLY - auxiliary control lever, cab models

1шт.

39

NSS

NOT SOLD SEPARAT

COVER - slotted, upper, auxiliary control lever

1шт.

40

1999838C1

SEAL

- cover, slotted, upper

1шт.

41

1999588C1

RETAINER

- cover, lower, cab models

1шт.

42

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

BOLT - hex socket button head, 5/16 NC x 3/4 inch

2шт.

43

131-113

SPRING NUT,J, Ret, 5/16"-18

Speed grip J, Ret, 5/16"-18

2шт.
