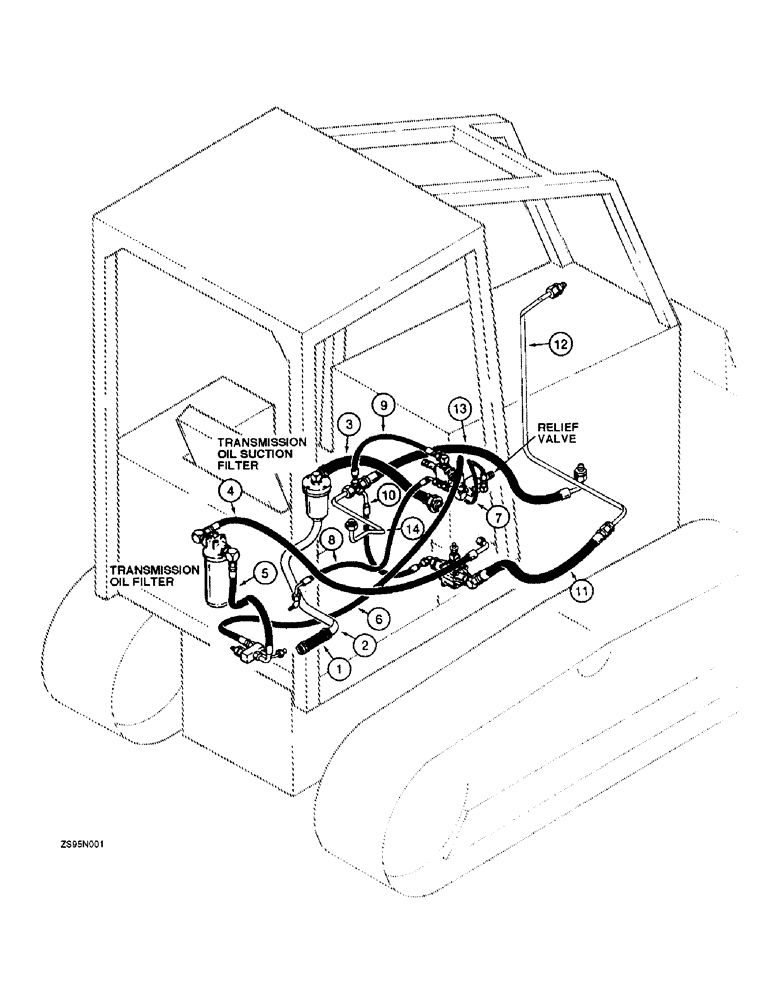

Запчасти Case 850E (1-10) - PICTORIAL INDEX, CRAWLER HYDRAULIC CIRCUITS, TRANSMISSION SUPPLY, RETURN & COOLING LINES (00) - PICTORIAL INDEX

1

Suction Hose at Transmission, figure 6-28

1шт.

2

Suction Tube from Transmission to Suction Filter, figure 6-28

1шт.

3

Suction Hose from Filter to Torque Converter, figure 6-28

1шт.

4

Supply Hose at Torque Converter to Filter, figure 6-26

1шт.

5

Supply Hose at Modulator Valve from Filter, figure 6-26

1шт.

6

Supply Hose at Relief Valve from Modulator Valve, figure 6-26

1шт.

7

Supply Hose at Pressure Sensing Valve from Relief Valve, figure 6-26

1шт.

8

Return Hose from Pressure Sensing Valve to Transmission, figure 6-30

1шт.

9

Cooling Circuit Hose at Pressure Sensing Valve, figure 6-30

1шт.

10

Intermediate Cooling Circuit Hose at Bypass Valve, figure 6-30

1шт.

11

Cooling Circuit Hose from Bypass Valve to Tube to Oil Cooler, figure 6-30

1шт.

12

Cooling Circuit Tube to Upper Port of Oil Cooler, figure 6-30

1шт.

13

Return Hose Oil Cooler to Transmission, figure 6-30

1шт.

14

Return Tube from Oil Cooler Hose to Transmission, figure 6-30

1шт.
