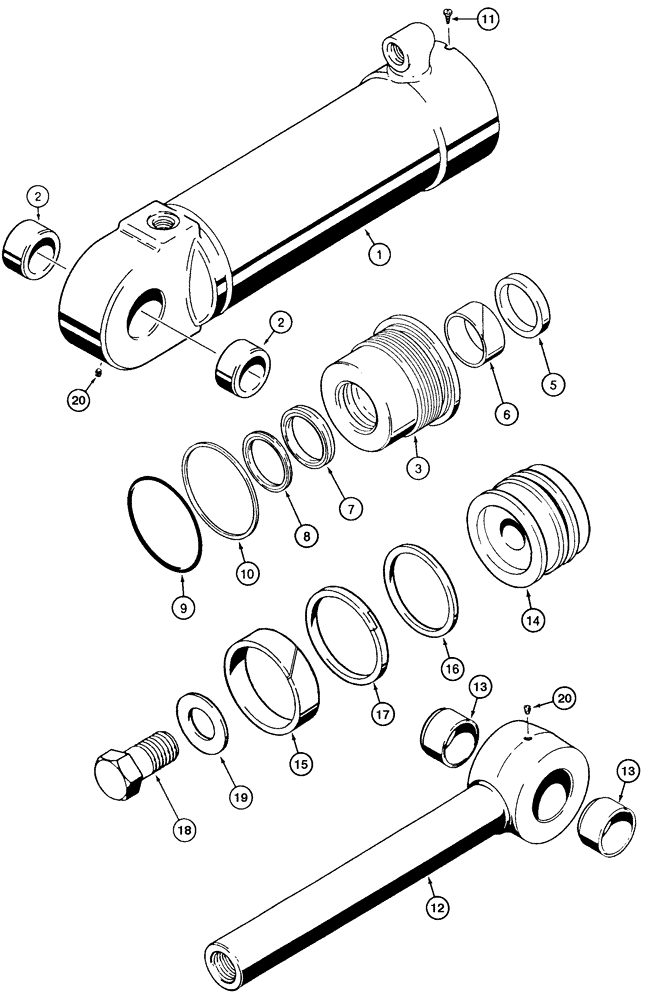

Запчасти Case 850E (8-057A) - DOZER ANGLE CYLINDER (08) - HYDRAULICS

1542644C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2 (114) ID x 8-9/16 inch (218 mm) stroke, dozer angle

2шт.

1

G103488

TUBE,4.5" DIA x 18.03" L

ASSEMBLY - cylinder

1шт.

2

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder

1шт.

3

1543031C1

GLAND

- cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Not sold separately, for service order 1543273C1 kit below

1шт.

7

1543001C1

SEAL

- rod, for service order 1543273C1 kit below

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

8

1543000C1

SEAL

- buffer, for service order 1543273C1 kit below

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

10

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

12

G35487

ROD

ASSEMBLY - piston, 2 inch (51mm) diameter (Replaces G35481)

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

14

1986855C1

PISTON

- cylinder

1шт.

15

G101996

WEAR RING,4.5" OD x 0.75" Thk

SEAL - piston

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

17

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

RING - wear

2шт.

Part of Seal Kit P/N 1543273C1

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

20

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

PLUG - square, 1/8 inch PT

2шт.

1986856C2

SEAL KIT

KIT - seal, Includes: Ref. 5, 6 (G101533), 7-10 and 15-17 and an instruction sheet, plus an additional seal not used in this application (Replaces 1543273C1)

1шт.

REF 680L PARTS BOOK 12/5/96 DB

1шт.
