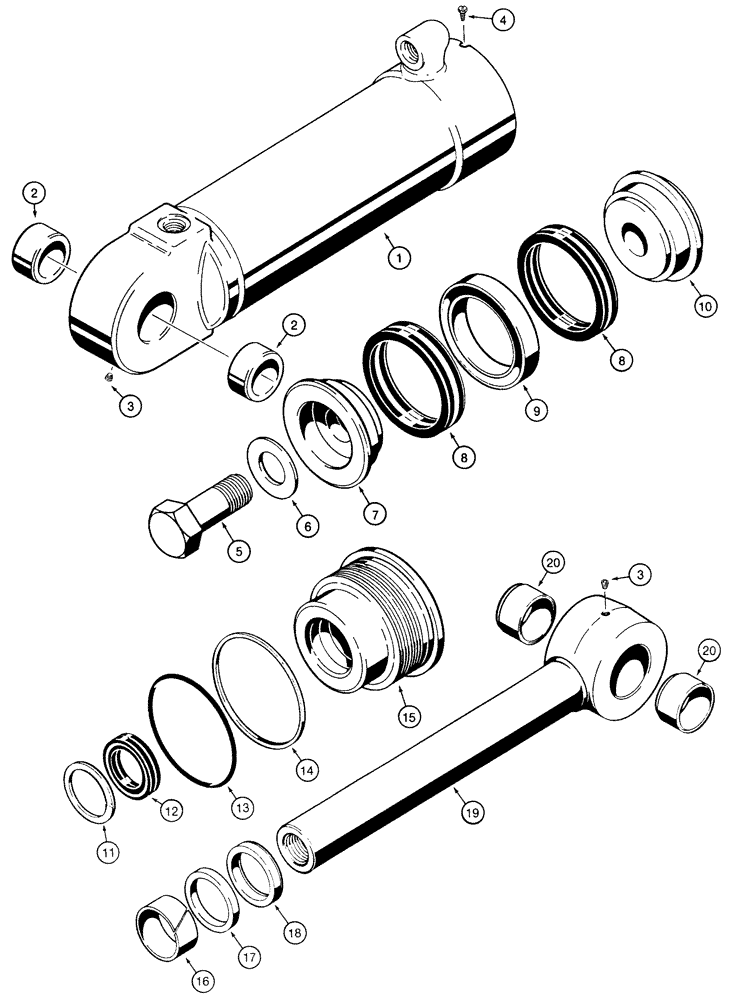

Запчасти Case 850E (8-056) - G103467 DOZER ANGLE CYLINDER (08) - HYDRAULICS

G103467

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2 inch ID x 8-5/8 inch stroke, dozer angle, no longer available, for service order 1542644C1 cylinder on Figure 8-57A

2шт.

1

G103488

TUBE,4.5" DIA x 18.03" L

- cylinder

1шт.

2

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1-3/4 ID x 1 inch long, tube

2шт.

3

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

5

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

6

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

7

D46931

PISTON

- split, bolt end

1шт.

8

D47205

PACKING

- piston

2шт.

Part of Seal Kit P/N 1543270C1

1шт.

9

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - wear

1шт.

10

G33634

PISTON

- split, rod end

1шт.

11

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

12

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

13

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Gland -246, 70 Duro, 4.484" ID x .139" Thk

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

14

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

15

1543031C1

GLAND

- cylinder

1шт.

16

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

18

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543270C1

1шт.

19

G35487

ROD

- piston, 2 inch (51 mm) diameter

1шт.

20

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1-3/4 ID x 1 inch long, piston rod

2шт.

1543270C1

SEAL KIT

KIT - seal, Includes: Ref. 8, 11-14, 16 and 18

1шт.
